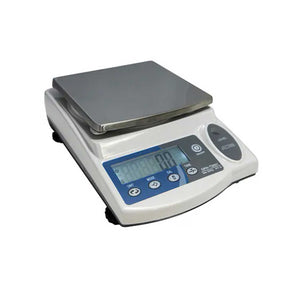

Precision Balance Scale - Optima OPH-T

Name: Precision Balance Scale - Optima OPH-T
Brand: Tufner
SKU: E10248
Price: 192.0 USD
Availability: InStock

Tufner designs and manufacturers a large variety of scales and unique weighing systems based on customer's specific needs.

Part#:

Product variants

Price
price: $192.00

Certain equipment offerings have options, shipping, and handling that require additional detail for quoting.

Optima OPH-T Precision Balance Scale with Round or Square Pan

APPLICATION
Precision Balance Scale

FEATURES
• Large, high contrast LCD screen
• Multiple weighing units: g, ct, lb, oz, ozt, N, dwt, GN (grain), tLT
• Splash-proof keyboard and display
• Round Pan readability 0.01 G / Square Pan readability 0.1 G

CAPACITY
200g to 6,000g (see models below)

ELECTRICAL
Comes with an AC adapter; rechargeable battery (optional)

MANUFACTURED
USA

MANUFACTURER LEAD TIME
1 week

MANUFACTURER WARRANTY
1 year

Part#	Pan	Capacity	Dimensions	Pan Size	Wt	Price
OPH-T202	Round	200 g x 0.01 g	10” L x 7” W x 3” H	Φ5”	4 lbs	$192
OPH-T302	Round	300 g x 0.01 g	10” L x 7” W x 3” H	Φ5”	4 lbs	$203
OPH-T502	Round	500 g x 0.01 g	10” L x 7” W x 3” H	Φ5”	4 lbs	$214
OPH-T602	Round	600 g x 0.01 g	10” L x 7” W x 3” H	Φ5”	4 lbs	$225
OPH-T2001	Square	2,000 g x 0.1 g	10” L x 7” W x 3” H	6.3” x 5.7”	4 lbs	$192
OPH-T3001	Square	3,000 g x 0.1 g	10” L x 7” W x 3” H	6.3” x 5.7”	4 lbs	$203
OPH-T5001	Square	5,000 g x 0.1 g	10” L x 7” W x 3” H	6.3” x 5.7”	4 lbs	$214
OPH-T6001	Square	6,000 g x 0.1 g	10” L x 7” W x 3” H	6.3” x 5.7”	4 lbs	$225

ADDITIONAL INFORMATION AVAILABLE BELOW

FEATURES
• Large, high contrast LCD screen
• Comes with an AC adapter; rechargeable battery (optional)
• Splash-proof keyboard and display
• Anti-static stainless steel weighing pan
• Automated zero tracking and full range tare
• Calibration with reference weights
• Parts counting, percent weighing and dynamic weighing
• Multiple weighing units: g, ct, lb, oz, ozt, N, dwt, GN (grain), tLT

SPECIFICATIONS
• Readability: 0.01g, 0.1g
• Repeatability: ±0.02g, ±0.2g
• Linearity: ±0.02g, 0.2g
• Stabilization Time: 5 seconds (typically)
• Sensitivity: 2ppm / (10 --30)
• Power (AC Adapter):
Input 100V-240VAC, 50HZ/60HZ
Output 6vDC-9vDC/600mA
• Baud Options: 300/600/2400/4800/9600
• Ambient Temperature: 40°F - 110°F
• Keypad: 5 keys, splash-proof
• Warranty: 1 year limited warranty
