Lighttells CM-100 Coffee Roast Degree Analyzer

Through advanced technology and sophisticated facilities, Lighttells is determined to provide superior design, service and quality control.

Color & Case:
Price
price
$1,400.00

Certain equipment offerings have options, shipping, and handling that require additional detail for quoting.

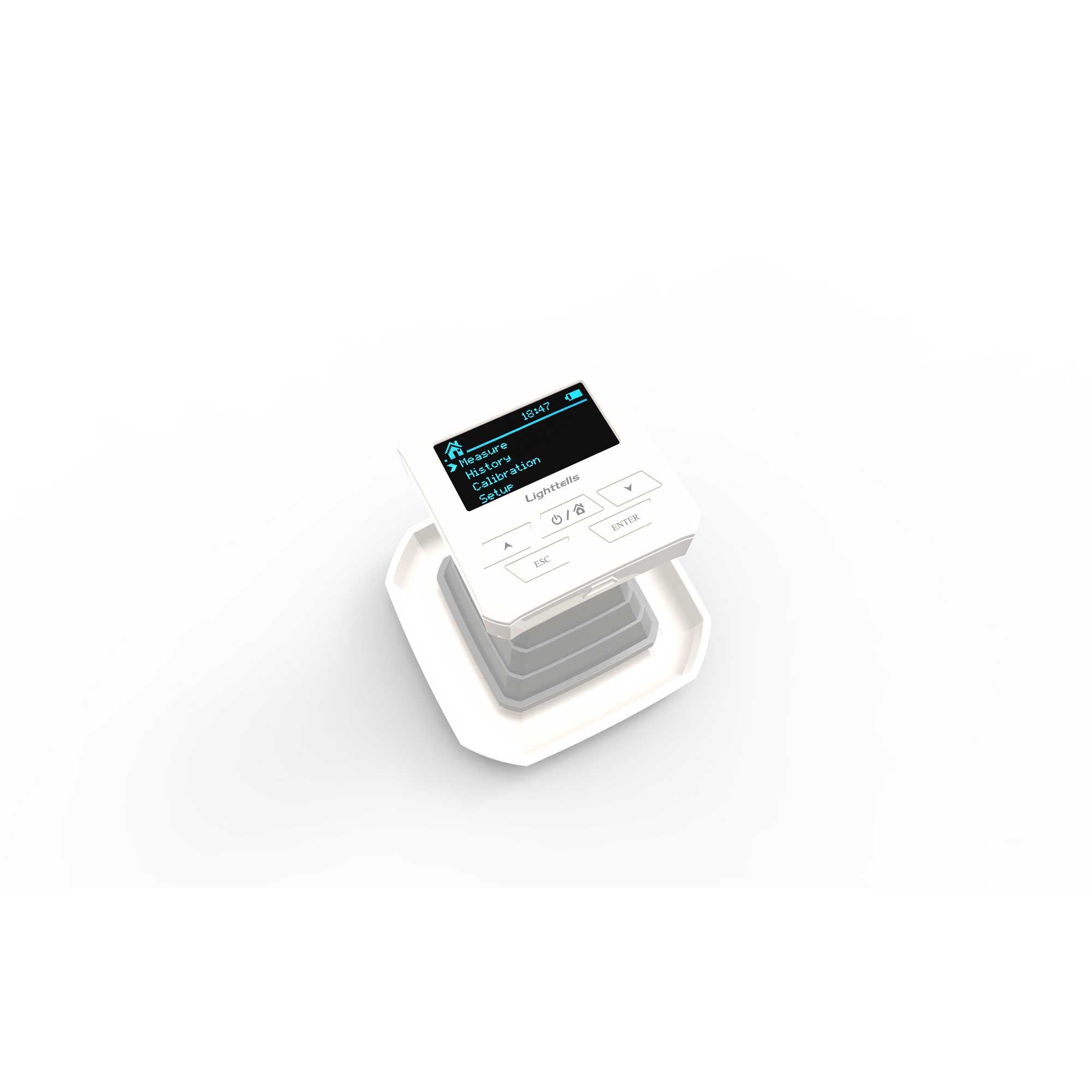

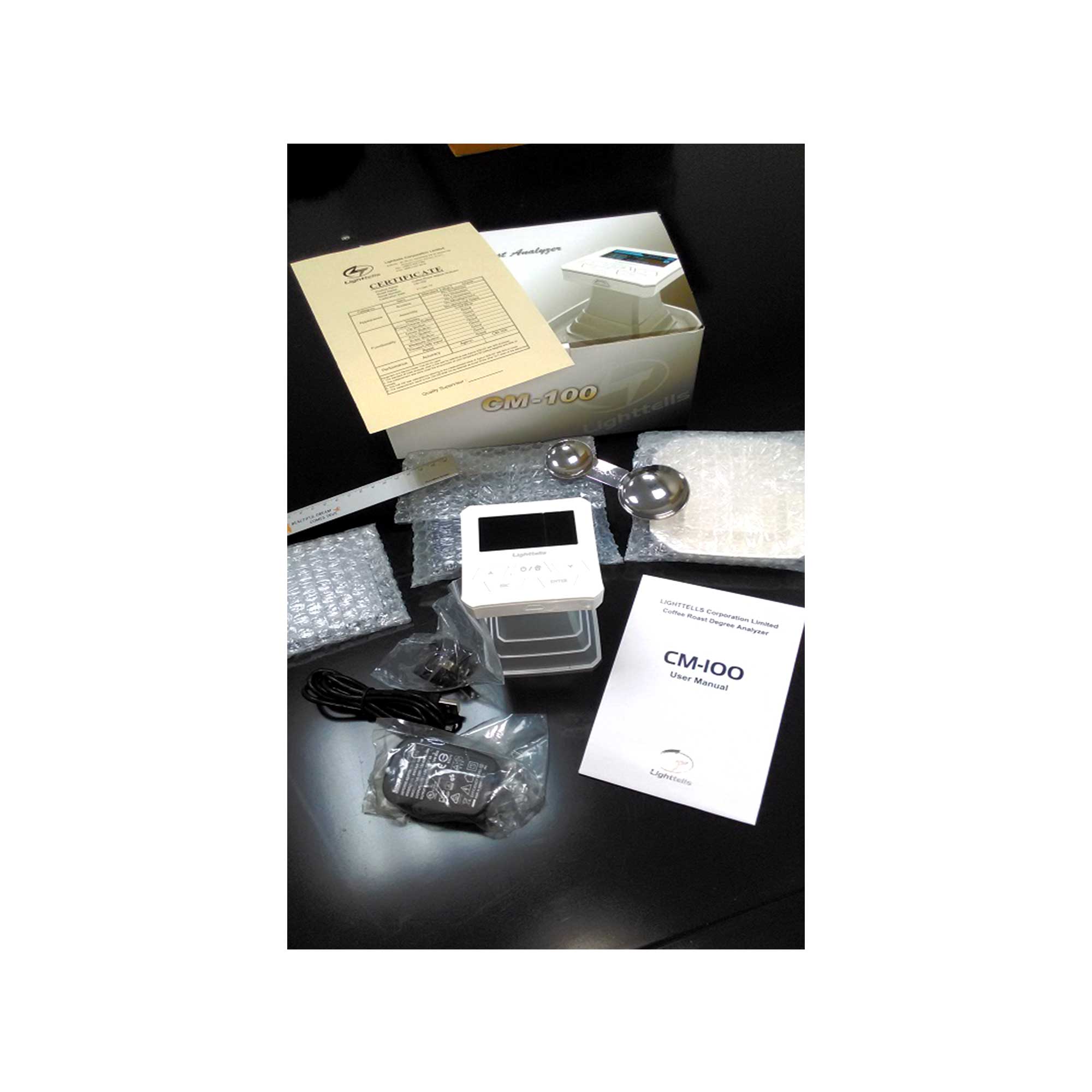

Lighttells CM-100
Coffee Roast Degree Analyzer



The SCAA-approved CM-100 is an accurate and dependable roast level analyzer, perfect for measuring roasted coffee beans or ground bean. Employing a Coffee Roast degree Analyzer can help classify roasting degrees and distinguish whole bean from ground, providing insight into the roasting curve and offering superior quality control to coffee roasting vendors, coffee shop owners and home roasters alike.



APPLICATION
Classify roasting degree

FEATURES
• NIR photometer tells the caramelization from the coffee beans or ground.
• One touch quick measuring key
• Stores up to 100 measurement results
• Long battery life
• Self-calibrating
• Scale range: 5 – 140 Agtron number

SCALES
• Gourmet (~SCAA Tiles)
• Common Name

ELECTRICAL
Li-ion 1150mAh Battery

MANUFACTURED
Taiwan

MANUFACTURER LEAD TIME
1 week

MANUFACTURER WARRANTY
One year

OPTIONS
• Black or White

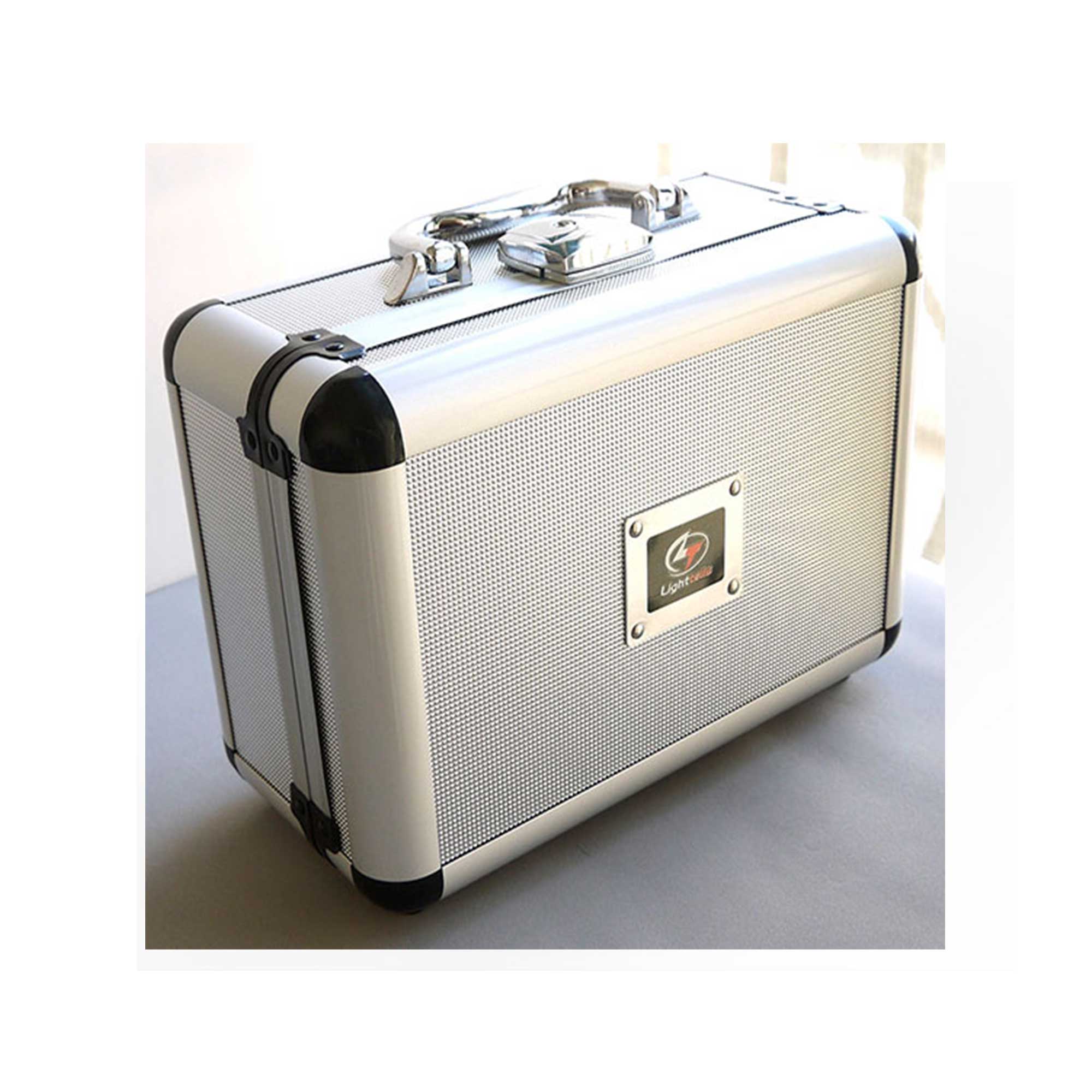

• Original carton or Metal Carry Case



ADDITIONAL INFORMATION AVAILABLE BELOW


CM-100 FEATURES

• NIR photometer tells the caramelization from the coffee beans or ground.
• Same as Agtron measurements using “Gourmet” scale
• Short warm-up time ( 1 min)
• One touch quick measuring key
• Long battery working hour (up to 6 hours of continuous use)
• Support using while battery charging
• Support Auto-power off setting
• Scale range: 5 – 110 Agtron number
• Stores up to 100 measurement results
• Support both SCAA and Common name
• Self-calibration


SPECIFICATIONS
Working hours:
6 H
Warm-up time: 60 seconds
Accuracy: Great
Housing Material: ABS + Aluminum

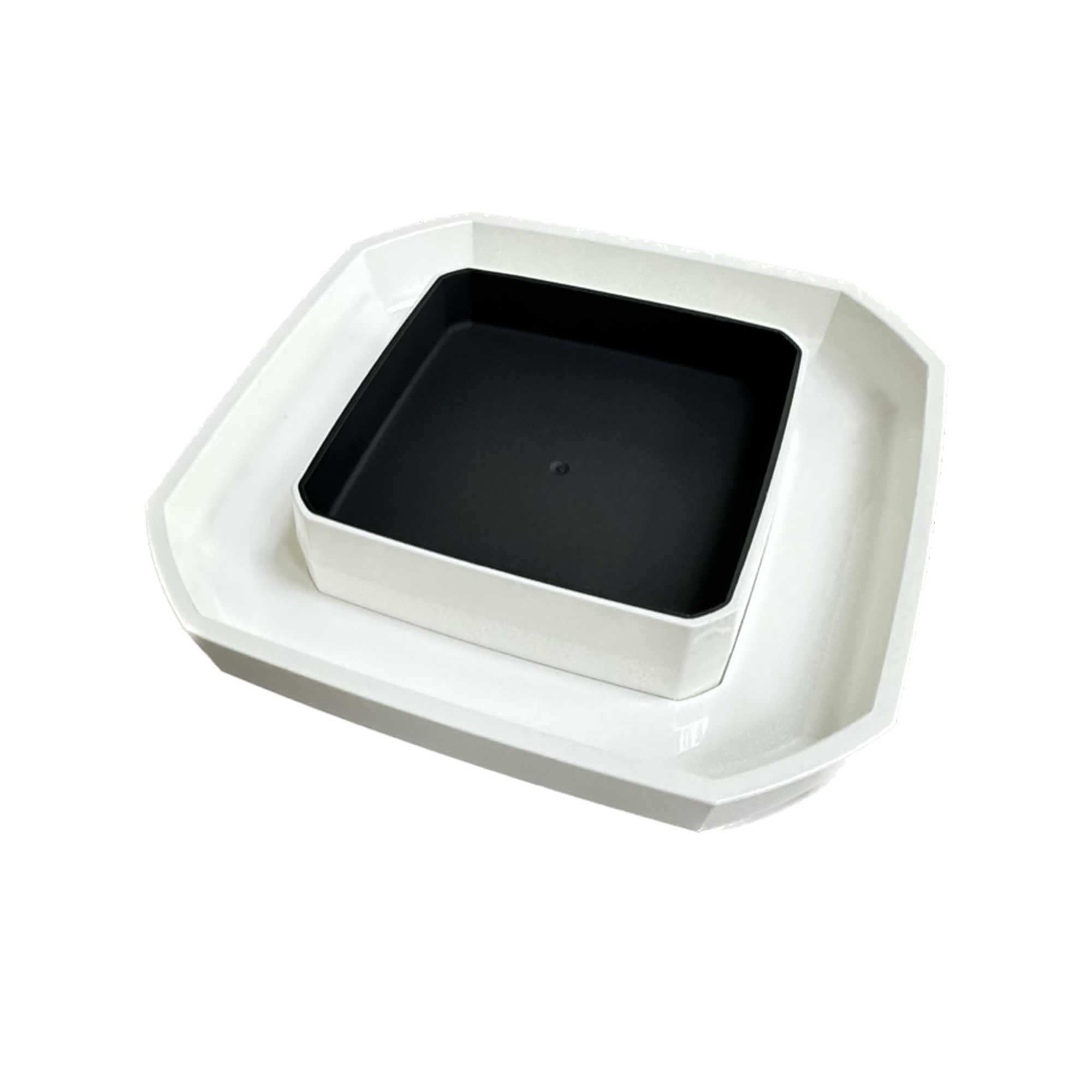

Product Size: (include bean dish)
L: 123.4mm
W: 123.4mm
H: 132mm
Measure area: 49 cm2
Panel size: 1.6” 128x64 mono OLED
Light: Infra-red LED
Sensor: Infra-red Sensor
Log: 100
Operating temp.: 0-50 degree C
Storage temperature: -10 – 60 degree C
Power consumption: 1.7W
Charging Power: 5V, 2A
Charging method: micro USB Port
Battery capacity: Li-ion 1150mAh Battery


Frequently Asked Questions

Why do you need a Coffee Roast Degree Analyzer?

It is recommended to have a Coffee Roast Degree Analyzer to help you to classify roasting degree or the delta between whole bean and ground to get a better understanding of the roasting curve and roasting result for better quality control.

Why do you need to know how uniform the roast is?

Coffee Roast Degree Analyzer provide you accurate SCAA Gourmet numeric scales result and display a variety of name terminology corresponding to the result (Light, City, Italian, etc.). Besides roast degree, it also provides the color uniformity of how your coffee beans were roasted.

Lighttells Complete Collection

Click on equipment to browse between
Lighttells CM-100 Coffee Roast Degree Analyzer
Lighttells CM-100 Coffee Roast Degree Analyzer
Lighttells CM-100 Coffee Roast Degree Analyzer
Price
$1,400.00$1,550.00
Lighttells CM-100+ Coffee Roast Degree Analyzer
Lighttells CM-100+ Coffee Roast Degree Analyzer
Lighttells CM-100+ Coffee Roast Degree Analyzer
Price
$1,600.00

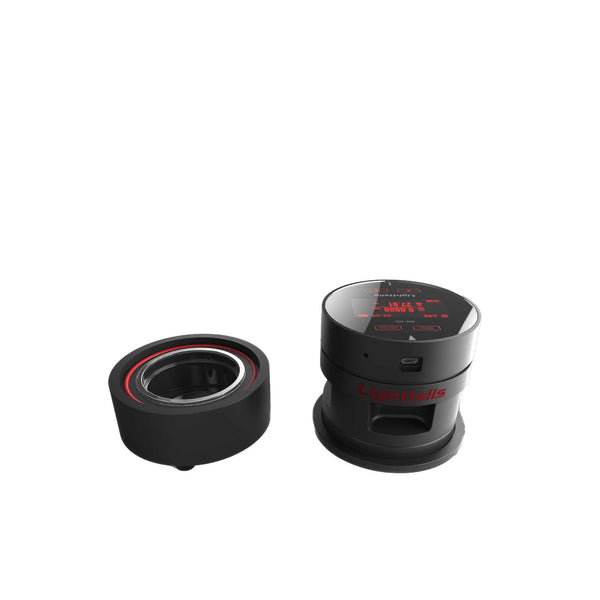

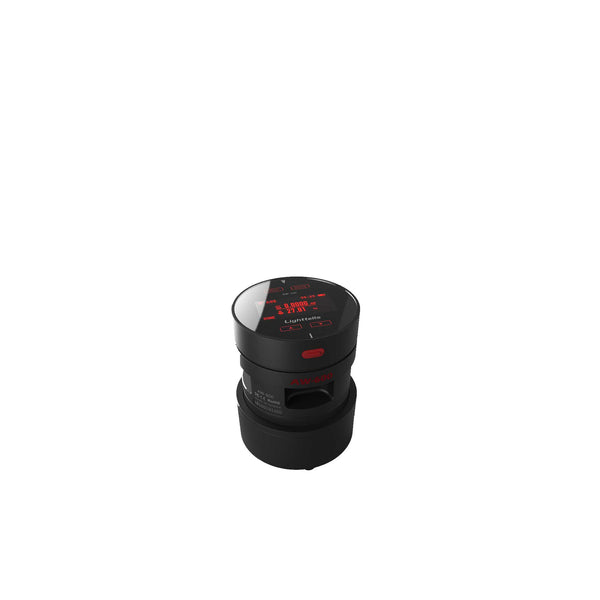

Lighttells AW-600 Water Activity Analyzer
Lighttells AW-600 Water Activity Analyzer
Lighttells AW-600 Water Activity Analyzer
Price
$2,400.00
Lighttells CM-200 Coffee Roast Degree/Uniformity Analyzer
Lighttells CM-200 Coffee Roast Degree/Uniformity Analyzer
Lighttells CM-200 Coffee Roast Degree/Uniformity Analyzer
Price
$2,400.00

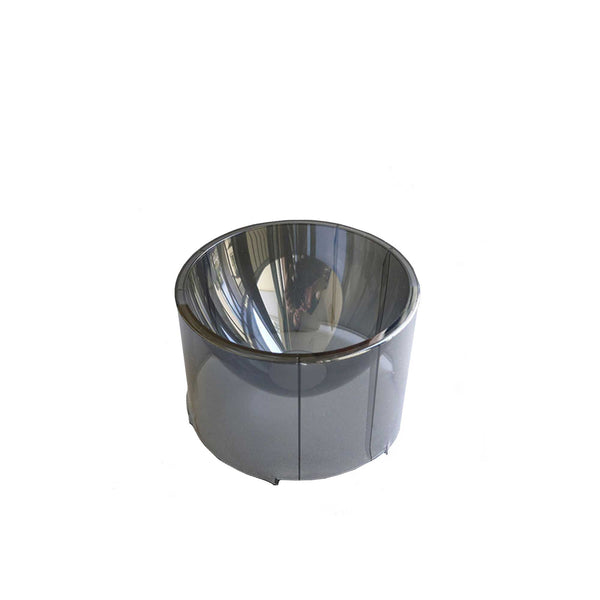

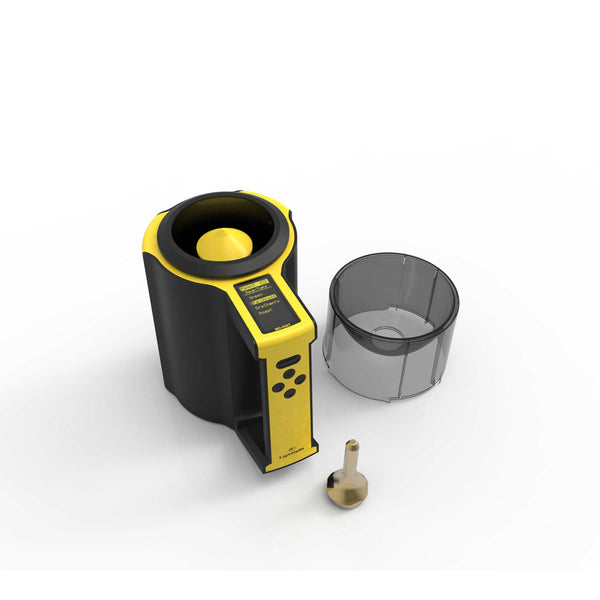

Lighttells MD-500 Moisture Density Analyzer
Lighttells MD-500 Moisture Density Analyzer
Lighttells MD-500 Moisture Density Analyzer
Price
$1,600.00

Complementary Equipment

Click on equipment to browse between
Mahlkönig EK43 Shop Grinder
Mahlkönig EK43 Shop Grinder
Mahlkönig EK43 Shop Grinder
Price
$3,150.00

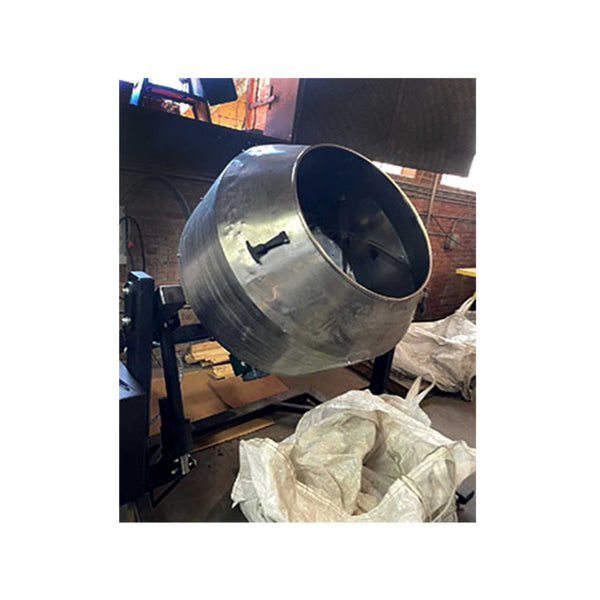

US Roaster Corp Coffee Bean Blender
