SPECIFICATIONS

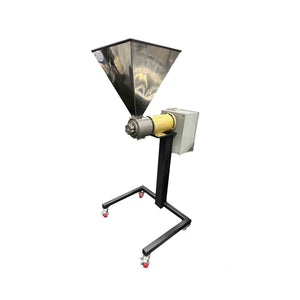

The Model B Burr Grinder is designed to give the user optimal
control over the grinding of coffee with motor speed controls and a
hand knob for simple grind adjustments.
• Dimensions: 60 “ x 26” x 30” (HxWxD)
• Weight: 250 lb with bag holder
• 4.75” knife-steel hardened 0.8” thick burs
• Designed for 50,000 lbs/set with proper care
• 25 lb stainless steel hopper
• Averages 250-300 lb/hr on filter fine
• Averages 400 lb/hr for regular grind coffee

FEATURES
• Heavy-duty motors with UL 508-A approved industrial control
system with speed controls
• Upgrades available to an all stainless design
• Adjustable legs for ease of movement and cleaning
• Machined head from solid billet aluminum to reduce heat
• Main shaft includes ball bearings
• Hand knob allows simple grind adjustments
• Grinder base design allows for mobile container
• Includes chaff density control gate
• Replacement burrs available
• Heavy-duty motors with UL 508-A approved industrial control
system with speed controls
• Upgrades available to an all stainless design
• Adjustable legs for ease of movement and cleaning
• Machined head from solid billet aluminum to reduce heat
• Main shaft includes ball bearings
• Hand knob allows simple grind adjustments
• Grinder base design allows for mobile container
• Includes chaff density control gate
• Replacement burrs available

ELECTRICAL OPTIONS
• 120V / 24 amps
• 208V / 15 amps
• 230-240V / 14 amps
