Viking Masek M250 VFFS Vertical Form Fill Seal - 100 BPM

Click image to open expanded view

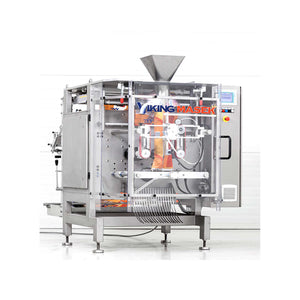

Viking Masek M250 VFFS Vertical Form Fill Seal - 100 BPM

Viking Masek is known for easy-to-use premade pouch packing machines, economical VFFS baggers, high-speed continuous-motion vertical baggers, and multilane stick packaging machines.

Price
price: $0.00

Certain equipment offerings have options, shipping, and handling that require additional detail for quoting.

Viking VFFS M250
Intermittent Bagmaker Packaging Machine

Featuring an enclosed jaw drive and robust stainless steel frame, the VFFS M250 is the ultimate solution for coffee, cereal, cannabis, and other dusty items. It's one of the few VFFS machines that can package liquids and solids alike. Stainless steel, durable construction lets it package in the harshest dusty and wet conditions. Opt for washdown construction and you can clean the machine in line with stringent food standards.

APPLICATION
Vertical form fill and seal machine

FEATURES
• Open modular design
• Fast action jaws can produce up to 100 bags per minute
• Automatic film tracking
• Minimal maintenance requirements

CAPACITY
Minimum bag size: 60 mm × 60 mm (2.36“ × 2.36“)
Maximum bag size: 250 mm × 400 mm (9.84“ × 15.75“)
Maximum Speed: 100 BPM

ELECTRICAL
480V // three phase // 60Hz // 20 amps // 6kVA

AIR PRESSURE
Air Pressure: 6 bar (30 CFM at 90 PSI)

MANUFACTURED
USA

MANUFACTURER LEAD TIME
1 week

MANUFACTURER WARRANTY
1 year

WEIGHT
1655 bs

DIMENSIONS

OPTIONS
• Bag-in-bag configuration
• Flat-bottom bag assembly
• Horizontal jaw for up to 340 mm (13.39") wide bag
• Impulse sealing for poly film structures
• Washdown IP66 construction
• Vacuum pull belts
• Hole punch (Euro slot or round)
• Fold-down/tape-down unit
• Load shelf
• Product settler
• Gas flush
• Static elimination
• Degassing valve applicator
• Tear notch
• Remote diagnostics
• In-feed and take-away conveyors
• Zipper applicator
• Integration with variety of fillers, printers, metal detectors, label applicators, and checkweighers

ADDITIONAL INFORMATION AVAILABLE BELOW

VFFS Intermittent Bagmaking Equipment

The M250/300 is a robust force of nature! This high-performance VFFS machine offers a flexible, open modular design that won't break the bank. The fast-acting jaw can deliver up to 100 bags each minute, with bag dimensions of up to 250mm width (400mm opt) and 400mm long in a single stroke. Plus, you get a myriad of bag styles. This machine also features a linear actuator film web edge guide for aligning film with the forming tube. In short, it's an exacting and user-friendly machine that will meet all your packaging needs - excitement guaranteed!

Features

Robust stainless steel frame
Enclosed, direct drive jaw actuation
Siemens or Allen Bradley control
Off-the-shelf components
Minimal maintenance requirements
Short film path
Small machine footprint
No tool change-over
Self-centering pull belts
Automatic film tracking
VFD powered film unwind
Quick film splice table
Product stagers
End-seal cooling air
Bag deflators
Photo-eye and encoder
Tri-fold guard door
Jaw obstruction detection
Runs most film structures
Storage for 100 product recipes

Specifications

Maximum Roll Diameter: 500 mm (19.6")
Maximum Roll Width: 545 mm (21.4")
Weight: 750 kg (1,655 lbs)
Air Requirements: 6 bar (15-18 CFM at 90 PSI)
Power Supply: 6 kVA (480 V, three phase, 60 Hz., 20 AMPS)

Options

Bag-in-bag configuration
Flat bottom bag assembly
Horizontal jaw for up to 340 mm (13.39") wide bag
Impulse sealing for poly film structures
Washdown IP66 construction
Vacuum pull belts
Hole punch (Euro slot or round)
Fold-down/tape-down unit
Load shelf
Product settler
Gas flush
Static elimination
Degassing valve applicator
Tear notch
Remote diagnostics
In-feed and take-away conveyors
Zipper applicator
Integration with variety of fillers, printers, metal detectors, label applicators, and checkweighers
