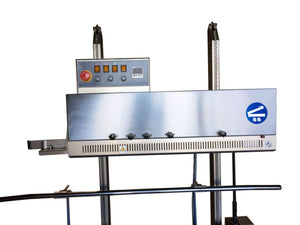

Sealer Sales HL-M1120LD-LtoR Vertical Band Sealer - Left Feed

Price
price
$4,165.50

We recommend applying for financing when you're fully committed and qualified for the purchase. Click here for qualifying criteria.

Certain equipment offerings have options, shipping, and handling that require additional detail for quoting.

Sealer Sales HL-M1120LD-LtoR Vertical Band Sealer - Left Feed

The HL-M112LD-LtoR medium to heavy duty band sealer can be used for all types of thermoplastic materials and bags.  This sealer can handle stand up pouches to gusseted bags.  Features an adjustable sealing head and conveyor handles bags of all sizes with a maximum height of 27" and weight capacity of 33 lbs.



APPLICATION
Constant/direct heat sealer

FEATURES
• Easy to operate - minimal operator training
• Fast warm up time
• Solid state digital temperature controller to maintain seal bars at the proper temperature for consistent seal quality

ELECTRICAL
110v / 60 Hz  / 230 W

SEALING SPEED
Sealing speed of up to 472 inches per minute (depending on the operator, ~20-26 bags/minute)

VERTICAL HEIGHT
3.9"-27"

TEMPERATURE RANGE
0-300°C

SEAL WIDTH/EMBOSS/PRINT
10mm Print 18PT 2 Lines

MANUFACTURED
China

MANUFACTURER LEAD TIME
1 week

MANUFACTURER WARRANTY
180 days

OPTIONS
• 15mm or 30mm seal width
• Digital counter to keep track of sealed packages
• Dry ink coding – Font size - 10.5PT

ADDITIONAL INFORMATION AVAILABLE BELOW


Direct Heat Sealers

Our direct heat sealers (also known as constant heat sealers) are best suited to seal thicker material such as coated aluminum foil, Kraft paper, cellophane, mylar, or coated PP.  Please note that with the exception of our KF-150PS and band sealers, our direct heat sealers cannot seal polyethylene.  Depending on the model of the sealer, material up to 16" wide and 20 mil thick can be sealed.  We offer two types of seal designs:  meshed or serrated.  Seal widths vary from 10mm to 15mm wide.  Our direct heat sealers are equipped with a thermostat or an electronic temperature controller to accurately controls the temperature. Both jaws are heated simultaneously resulting in better heat penetration to seal thicker materials.

Easy to operate

Set the temperature on the temperature controller depending on the material to be sealed.  Once correct settings have been reached, press down on the foot pedal and release.


Function

Direct heat (constant heat) sealers maintain constant heat in both jaws.  Direct heat sealers use power as long as the machine is turned on.  As a result, direct heat sealers possess better heat penetration in order to seal thicker materials.  We recommend a direct heat sealer for materials such as coated aluminum foil, poly cello films, gusset bags, coated Kraft papers, waxed paper, cellophane, mylar, coated PP, and other thicker materials.  Direct heat sealers cannot seal polyethylene.

Size

The size of the sealer depends on the width of the material to be sealed.  We usually recommend adding one inch to the width of material to be sealed to determine sealer length for easier handling.  Cutters on the sealer usually trim at slightly less than width of the sealer arm.

Speed

See below for a general guideline on speed (packages per minute) of our impulse and direct heat sealers.
