Ditting KFA1403 Industrial Grinder

The KFA1403 is the unparalleled solutions for industrial use in small to medium-size roasteries.

Price
price: $6,899.00

Certain equipment offerings have options, shipping, and handling that require additional detail for quoting.

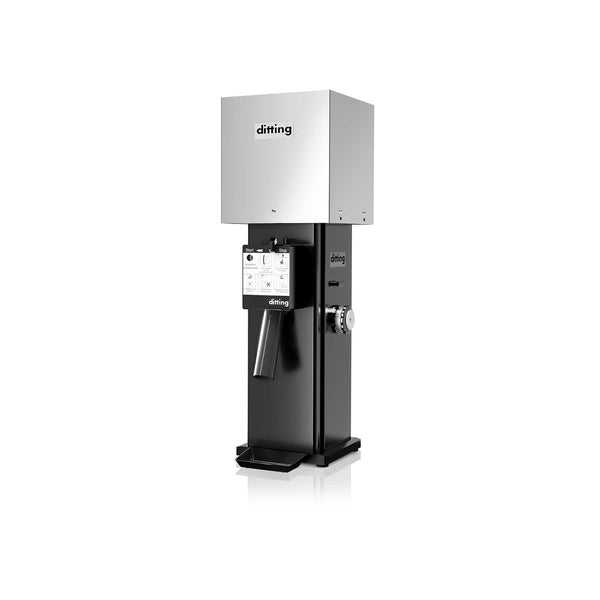

Ditting KFA1403 Industrial Grinder

The Ditting KFA1403 is an excellent option for small to medium-sized roasteries. The specially developed motor allows high grinding speeds at all grind adjustment steps. Grinding adjustments are stepless. This unit is easy to clean and maintain.

FOR USE IN
Roasting areas, higher volume grinding

OUTPUT, LBS/MIN
6 lbs/minute

MAX DAILY OUTPUT, LBS (8-HR SHIFT)
Up to 1,000+ lbs/day

MAX OPERATING CYCLE
Continuous grinding

HOPPER CAPACITY
22 lbs

GRINDING INTO
Barrel, large container

GRIND RANGE
200 to 1,100µm

FEATURES
Extended chute
Automatic bag clamp

POWER
240V // 3~ // 60 Hz

GRINDING DISC DIAMETER & MATERIAL
140mm (5.5") special steel burrs

COLORS
Black

CERTIFICATIONS
CE, CB, UL, NSF

DIMENSIONS (DxWxH, inches)
13.3" x 10.2" x 26.2"

WEIGHT, LBS
84 lbs

MANUFACTURED
Germany

MANUFACTURER LEAD TIME
1 week

MANUFACTURER WARRANTY
1 year

ADDITIONAL INFORMATION AVAILABLE BELOW

PRODUCT DETAILS
• Specially developed motors allowing high grinding speed at all grind adjustment steps
• Preservation of coffee’s unique aroma thanks to uniform, gentle and cool grinding made possible by built-in fan and specially sharpened burrs
• Stepless grind adjustment
• Precision burrs made of high quality wear-resistant material
Very easy to maintain and to clean

TECHNICAL DETAILS

Voltage // frequencies // phases:

380-415 V // 50/60 Hz // 3~

200-240 V // 50/60 Hz // 3~

Revolutions per minute: 1400 rpm (50 Hz)

Burr diameter: 140 mm

Burr material: Special steel

Burr grind life (median setting): ca. 10-15 tons

Average grinding capacity*: 2200 g/min

Bean hopper capacity: approx. 10kg

Nominal power: 1700-2000 W

Dimensions (w x h x d): 260 x 640 x 340 mm

Dimensions of packing (w x h x d): 330 x 730 x 400 mm

Net weight: 38kg

Shipping weight: 45kg

Standard color: Black

Available versions:

KFA: Automatic bag clamp

KF: Manual bag clamp

SPECIAL EQUIPMENT

• Bean hopper magnet

• Slide cut-off

• Cooling fan

• Overload protection

• Outlet extension

• Grind adjustment extension

*Depends on the grinding goods and the
chosen degree of fineness. All measured values under laboratory conditions.
Other electric specifications available on request. Subject to change without
prior notice.
