Coffee Loaders - Green Bean Coffee Loader

Custom Designed for Diedrich IR/DR-12/24 Roaster

Don at AAE and Rick, founder of CEPros, were hashing out the need for a customer's request on a loader for a Diedrich IR-12. With its light spun aluminum design, it can't support an AAE loader up top. So... what about those 4 bolts around the perimeter of the green bean intake?

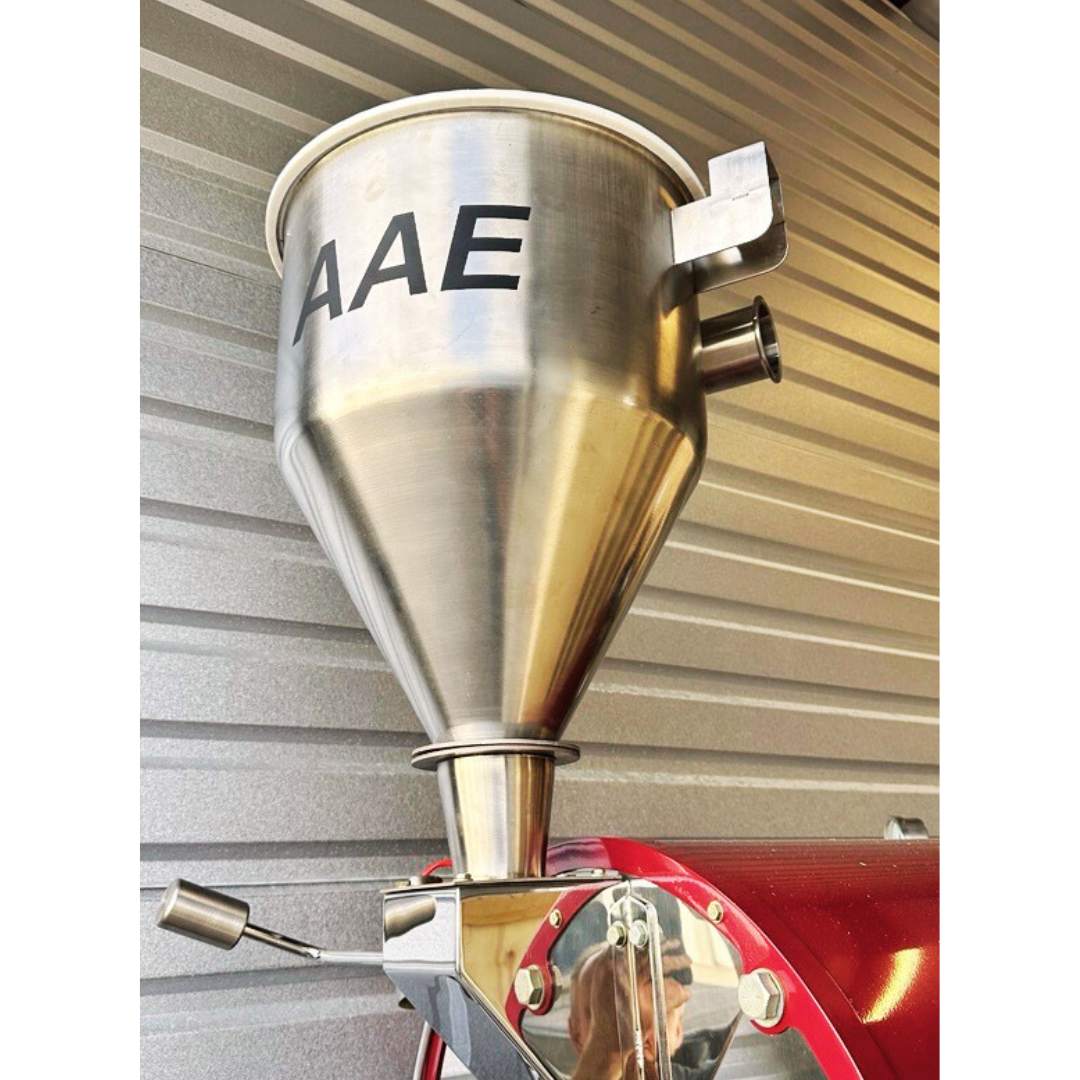

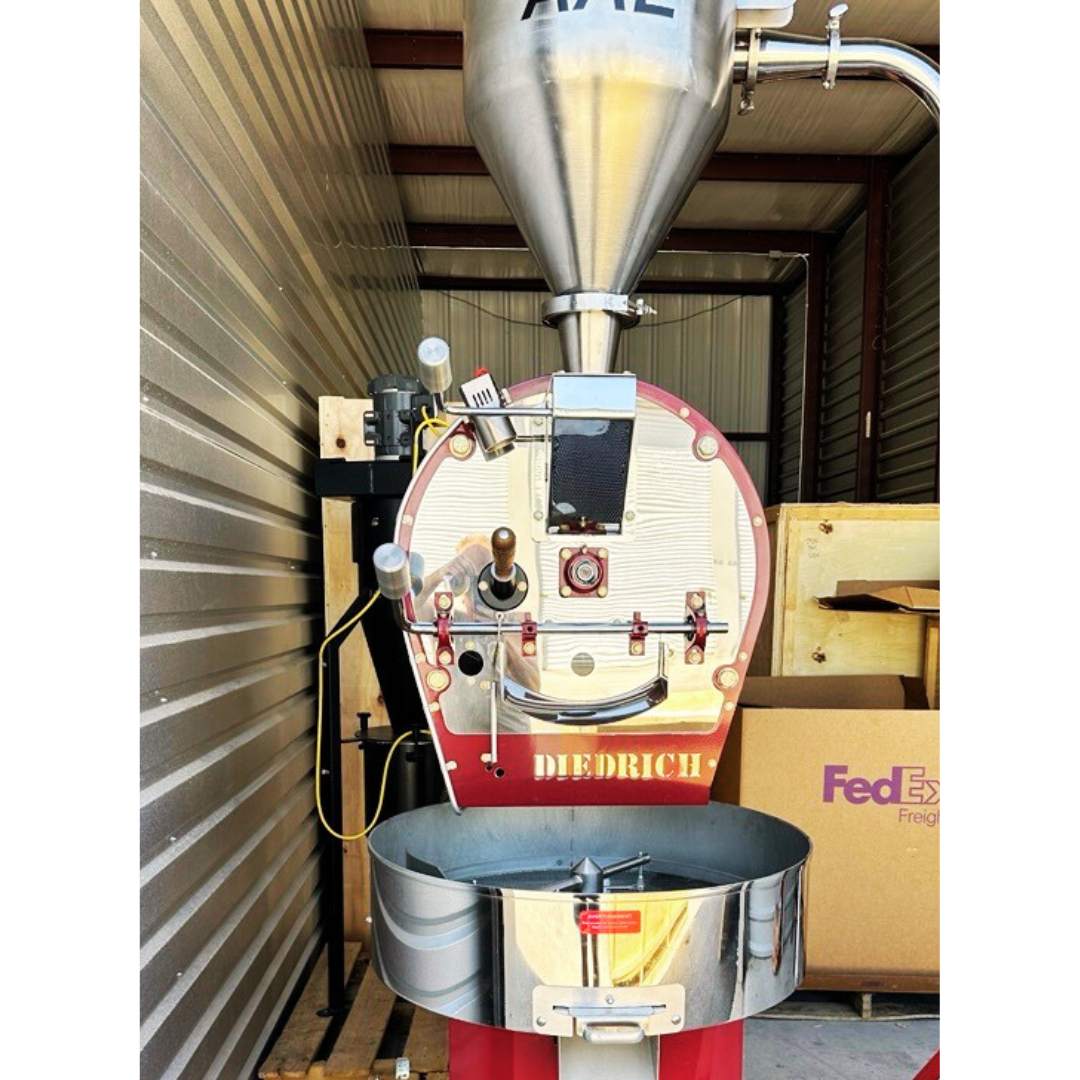

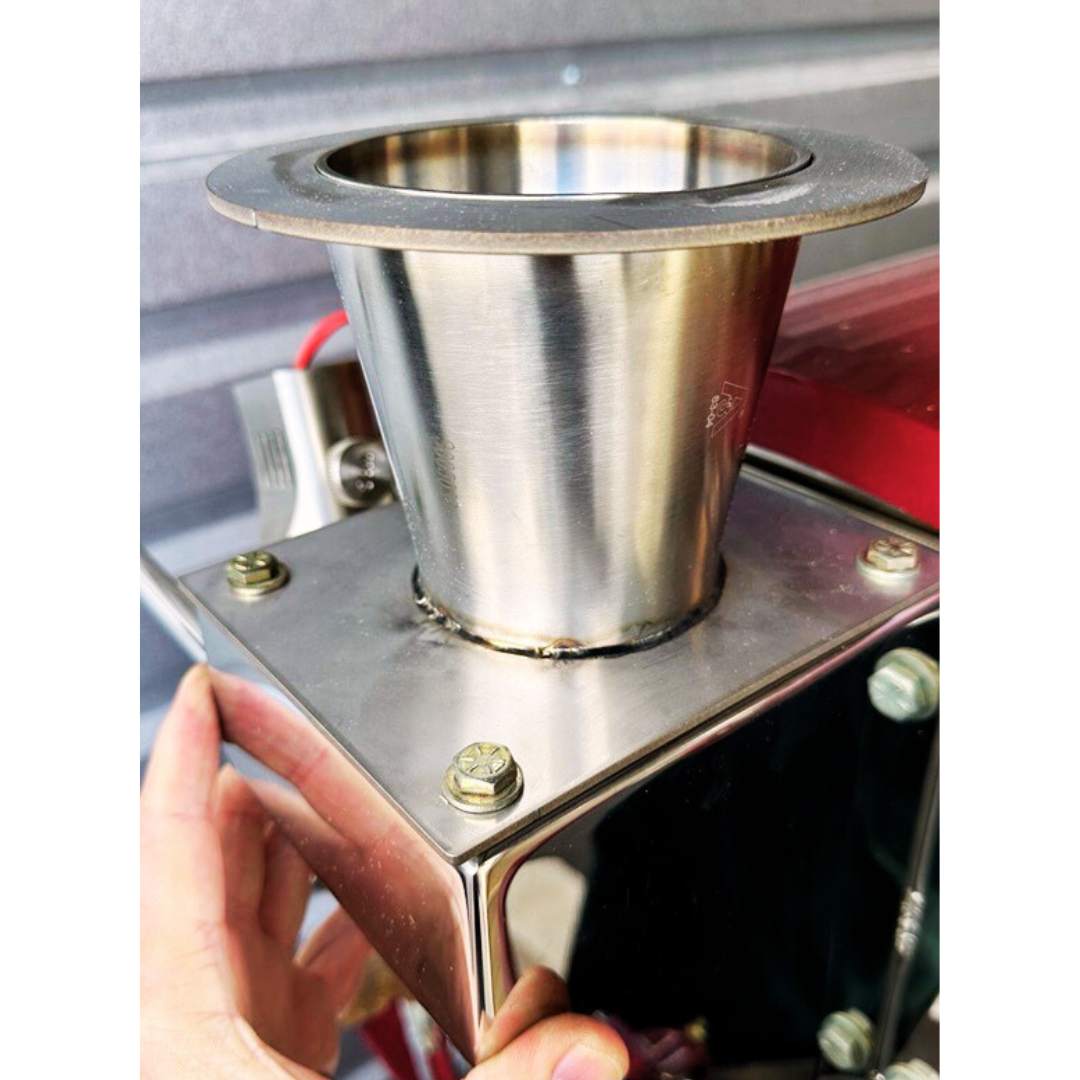

Say hello to the custom designed AAE loader for the Diedrich IR and DR roasters! The pictures show the 50 lb. vacuum chamber up top of the roaster green bean intake secured by a custom flange connection, thus replacing the Diedrich green bean supply hopper.

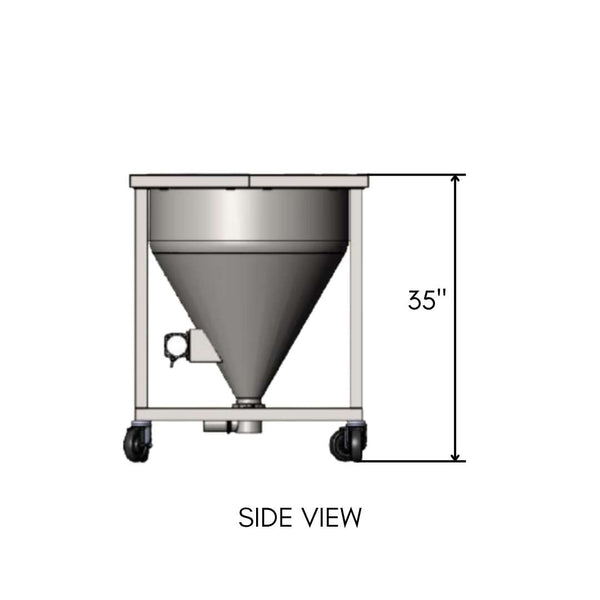

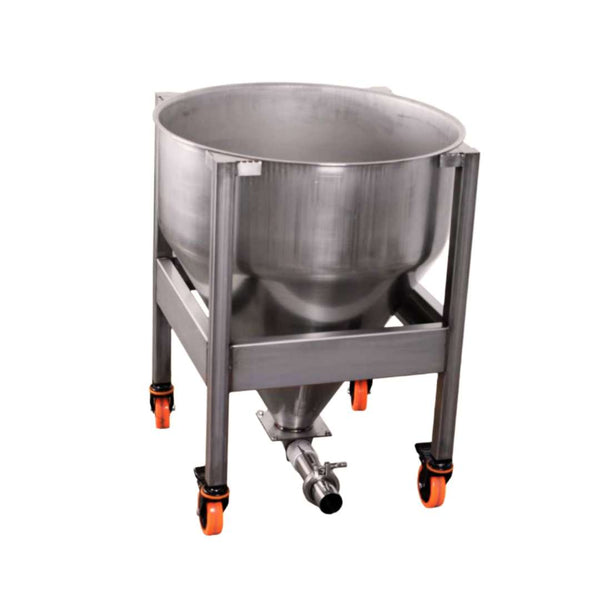

This is the traditional green bean coffee loading system made by AAE that can convey up to 2,000 lbs. per hour. The system comes with a 1.4 cubic foot vacuum chamber, a powerful remote vacuum with a filter, a remote on/off switch, flexible hose, an adjustable stainless steel wand, stainless steel fines separator, and a round roaster lid. Scale hopper sold separately.

APPLICATION
Loading green coffee beans into coffee roasters
(Loader for weigh fill, grinders, VFFS, and other applications found HERE)

FEATURES
• Hopper Opening - 13" W x 12" L
• Heavy-duty stainless class 3A steel
• Filter system

CAPACITY
2,000 lb. per hour / 50 lb. / 22 kg hopper
Optional 120 lb. hopper

ELECTRICAL
110v @ 15 amps - Remote switch

MATERIAL
Heavy-duty stainless steel class 3A

MANUFACTURED
USA

MANUFACTURER LEAD TIME
Ships within one week

MANUFACTURER WARRANTY
2-year parts

OPTIONS
If loading roasted beans and ground coffee, additional parts are required at additional charge.
