Equipment Recommendation
072123-JC

CEPros recommends the following equipment for your roastery. Detail for each follows.

Coffee Roaster Equipment Set
180kg Toper TKM-SX180 mini-plant
Separate PDF Proposal included

Coffee Transport to your 666 Grinder
AAE Coffee Loader, custom enhanced for this application

Entry-Level Automated K-Cup Machine - 25 cpm
HaiTec - HT-F20RS

Mid-Level Automated K-Cup Machine - 35 cpm
Eastsign - Inline DCC-1500

Mid-Level Automated K-Cup Machine - 50 cpm
Eastsign - Rotary RCC-3000

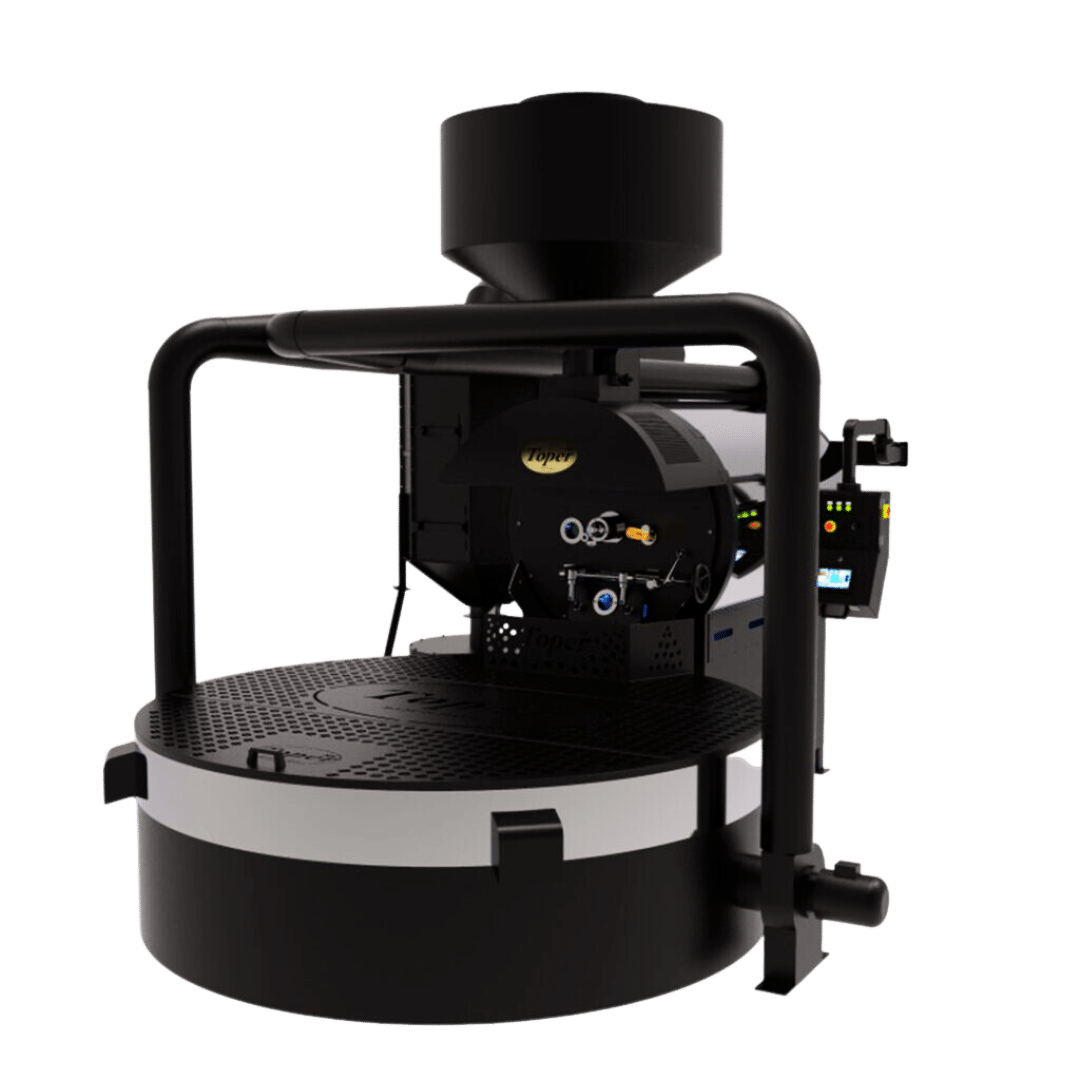

180 kilo black Toper Roaster
180 kilo Coffee Roaster

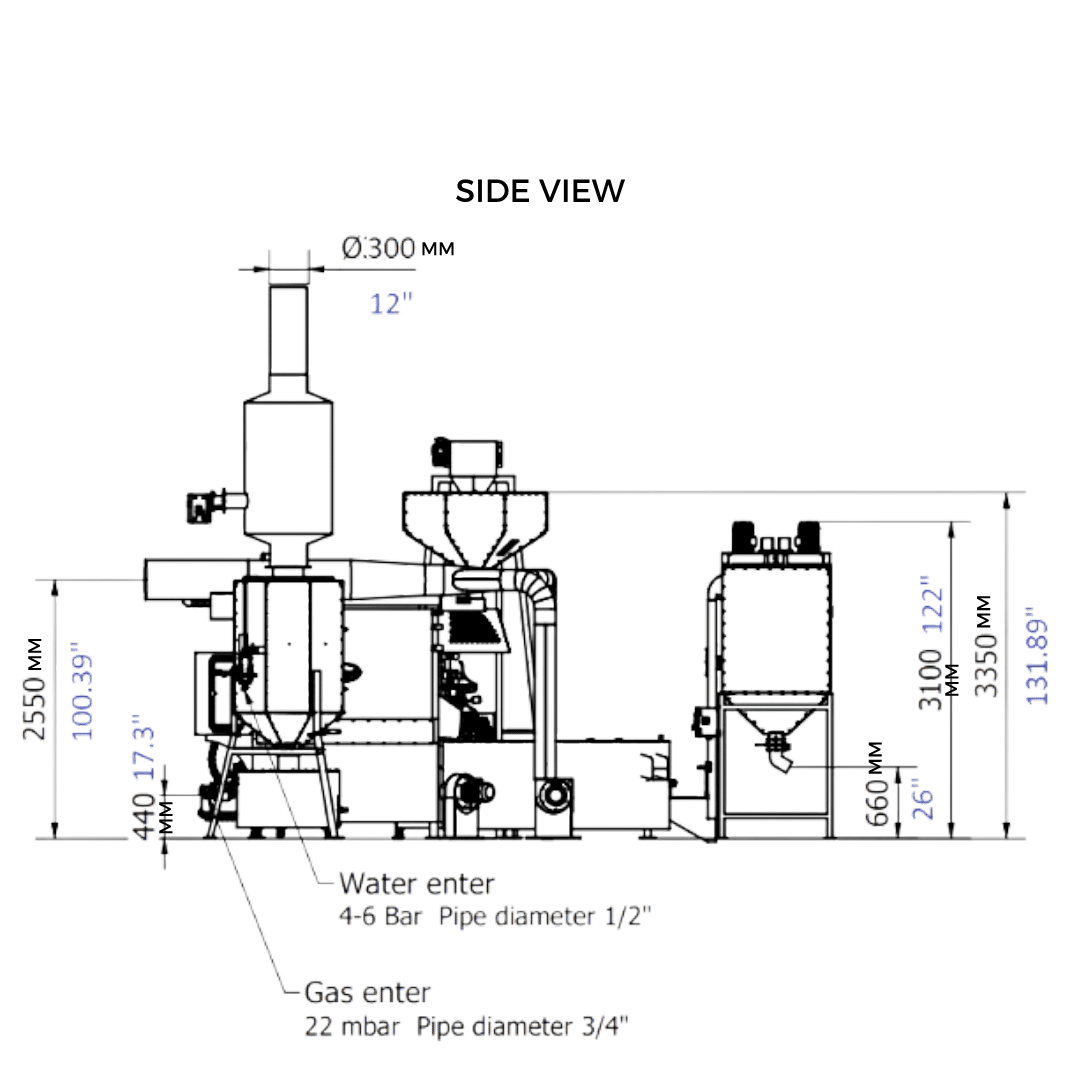

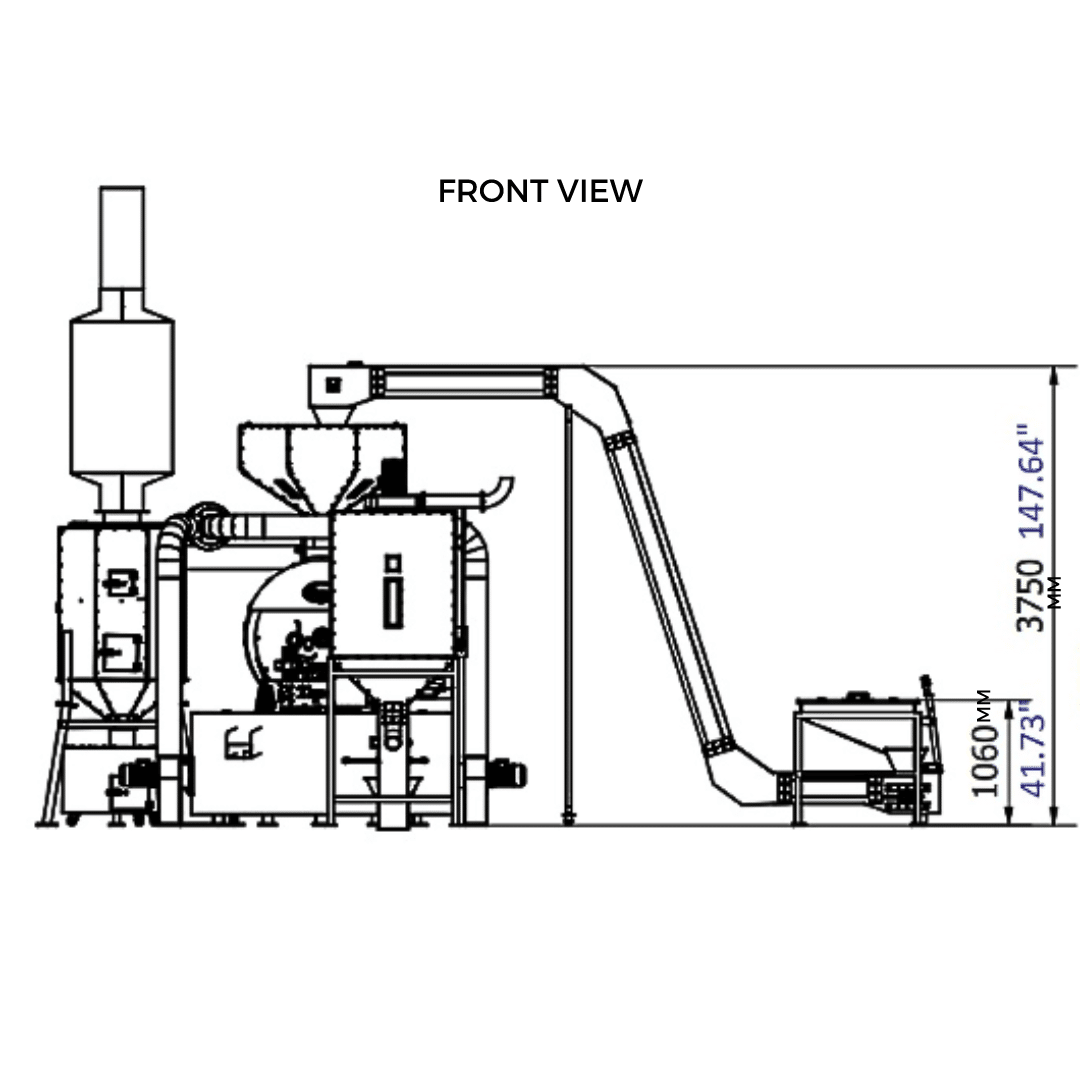

180 kilo Toper Roaster dimensions and layout. Side view.

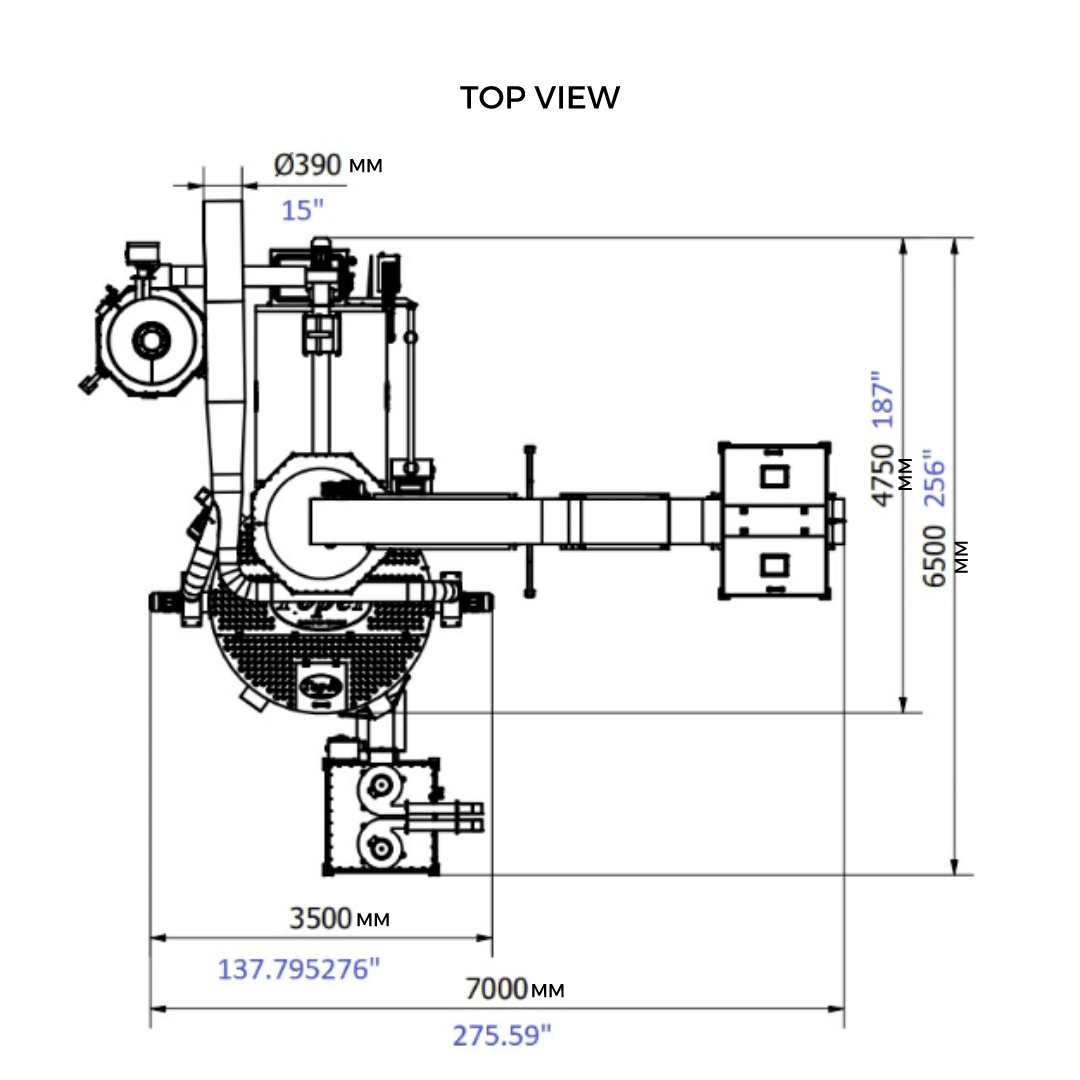

180 kilo Toper Roaster dimensions and layout. Top view.

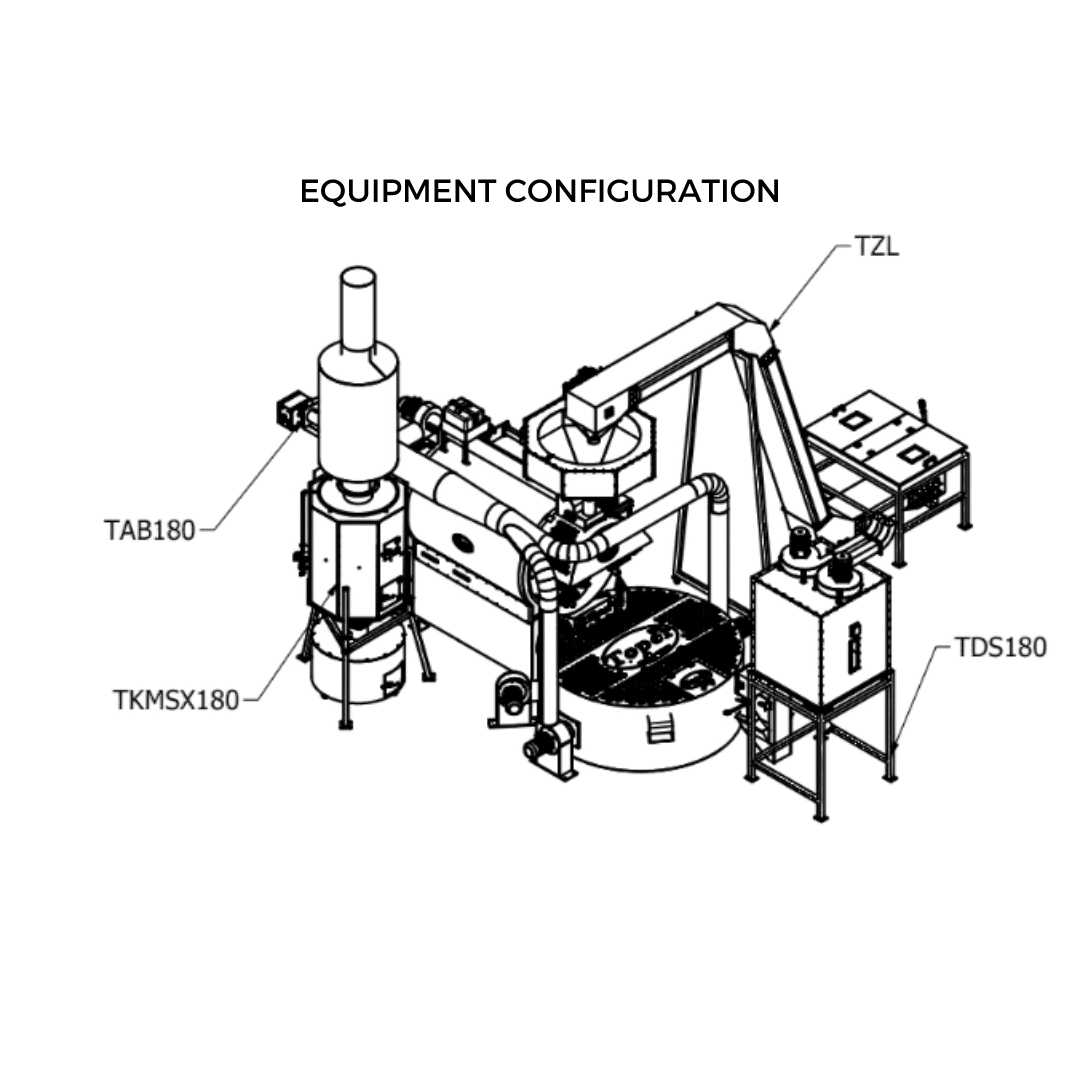

180 kilo Toper Roaster dimensions and layout. Equipment configuration.
Click image to open expanded view
180 kilo black Toper Roaster
180 kilo Coffee Roaster
180 kilo Toper Roaster dimensions and layout. Side view.
180 kilo Toper Roaster dimensions and layout. Top view.
180 kilo Toper Roaster dimensions and layout. Equipment configuration.

180 kilo Coffee Roaster

Price
$129,000.00

180 kilo Coffee Roaster

180kg Toper TKM-SX180 - New

The Toper FULLY AUTOMATED TKM-SX180 (180 kg) is as solid of an industrial workhorse as they come. Saddle up because this guy has more than enough stamina to churn out a consistent roast day in and day out.

Each Toper Roaster includes:

• FULL AUTOMATION
• External chaff collector
• All connecting ducting and clamps
• User-centric Advanced Touch Screen Control Board with telescopic arm
• The Toper 5 roasting steps with 12 recordable repeatable coffee roasting profiles
• Connection to Artisan or Cropster
• Multipoint temperature readings with 3 thermocouples (product, smoke, and ambient temperature)

All Toper Roasters feature an exceptional range of built-in features that put you in the driver’s seat:

• Double-walled drum
• Adjustable manual flame and smoke control
• Anti-fire system in chaff collector
• Pressure/heat sensor pipe to chaff collector
• Manual drum crank in case of power outage

180 KG ROASTER SPECIFICATIONS
Minimum Capacity 198.42 lbs (90 kg)
Maximum Capacity 396.83 lbs (180 kg)
Roaster Dimensions 167.32″ x 207.87″ x 142.52″
Roaster Weight 9,479.88 lbs (4,300 kg)
CFM 2356
BTUs 675,600
Gas Pipe Inlet 1″
NG Pressure Mbar 18-22
LP Pressure Mbar 32-35
Volts 380
Hz 60
Phase Triple
Amps 40
Power (kW) 198
No. of Motors 6
Roaster Air Outlet (mm) 300
Cooler Air Outlet (mm) 380
Modified WYE N/A
Chaff Water Inlet 1/2″

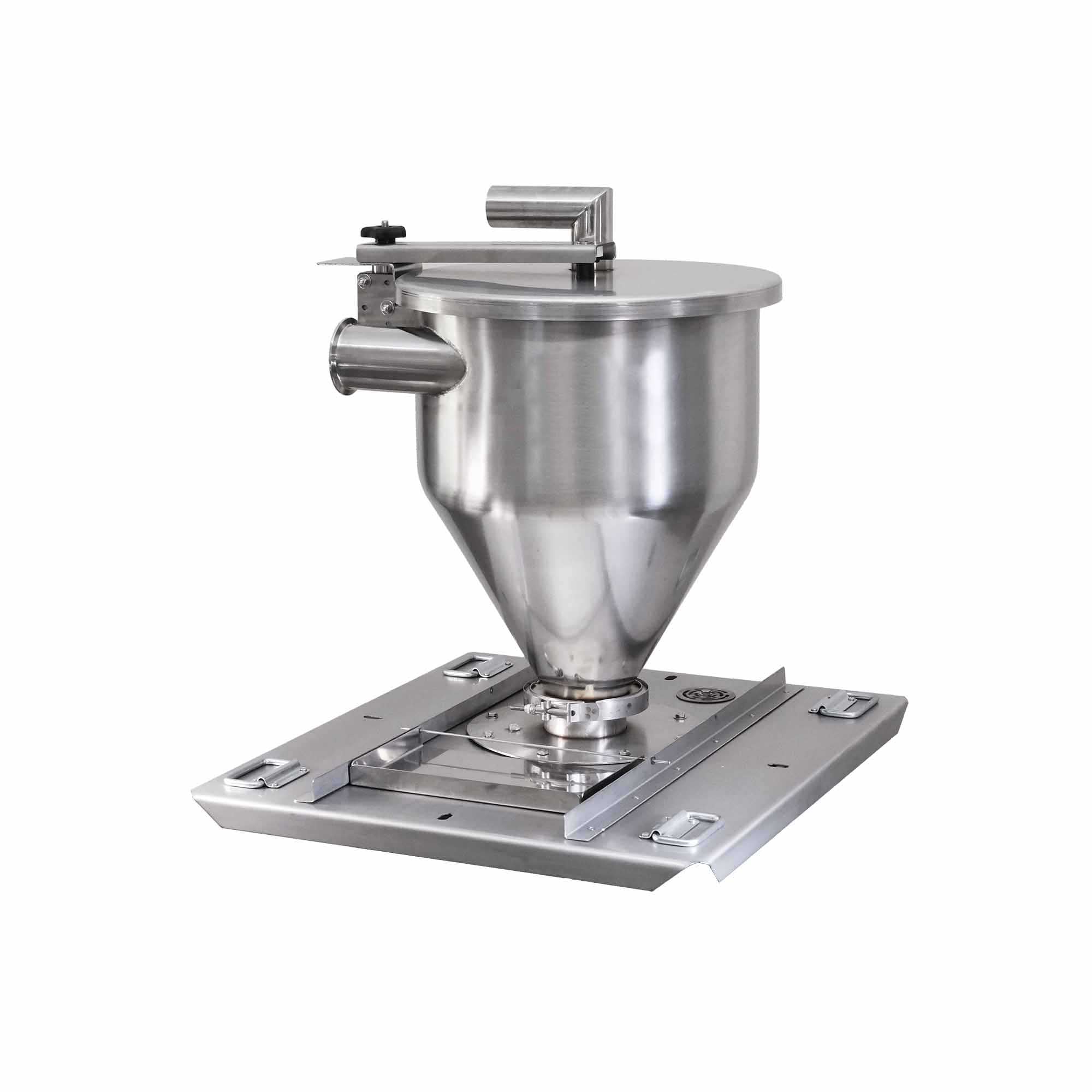

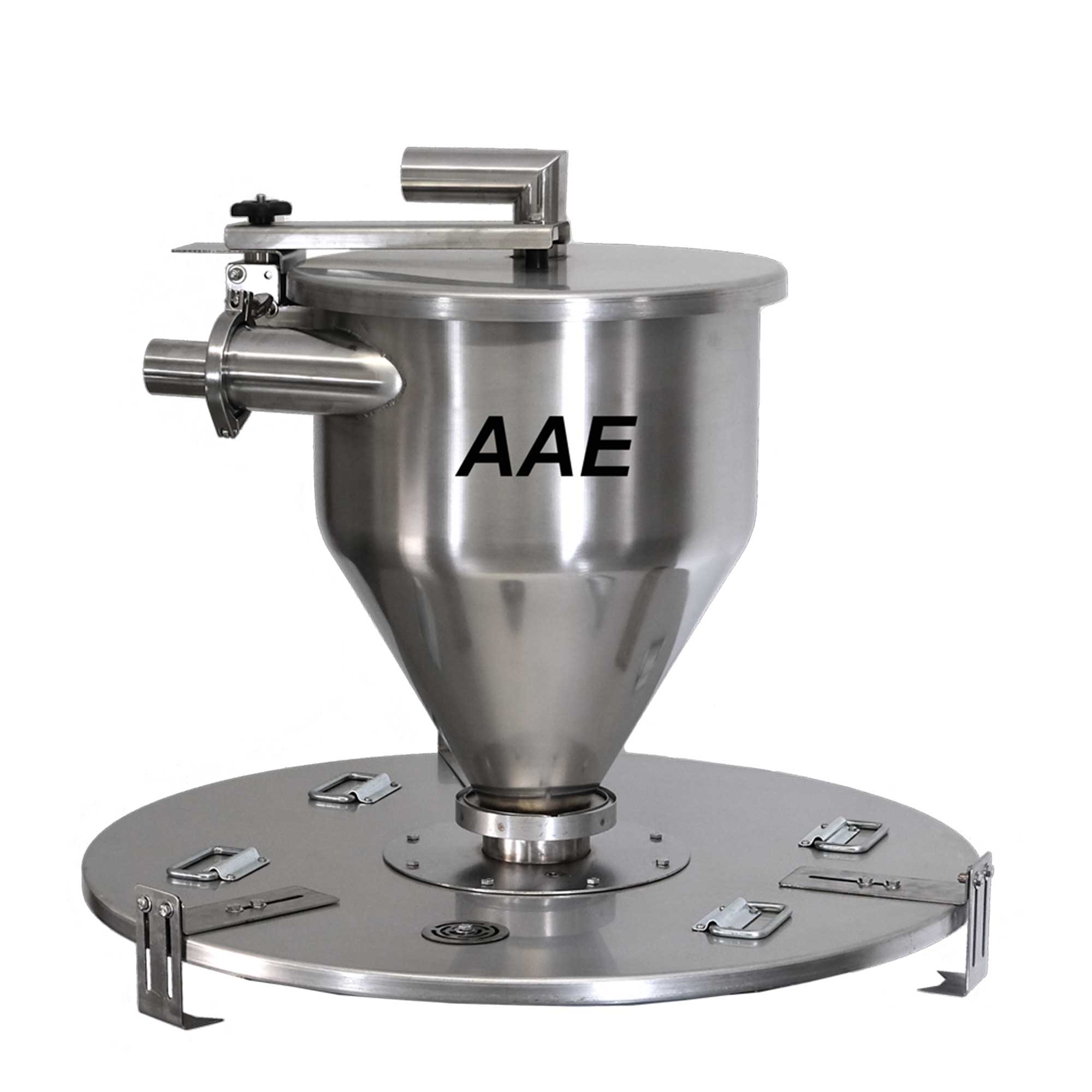

Coffee Loaders - Coffee Loader — up to 50 lb.
Coffee Loaders - Coffee Loader — up to 50 lb.
Coffee Loaders - Coffee Loader — up to 50 lb.
Coffee Loaders - Coffee Loader — up to 50 lb.
Click image to open expanded view
Coffee Loaders - Coffee Loader — up to 50 lb.
Coffee Loaders - Coffee Loader — up to 50 lb.
Coffee Loaders - Coffee Loader — up to 50 lb.
Coffee Loaders - Coffee Loader — up to 50 lb.

Coffee Loaders - Coffee Loader — up to 50 lb.

Price
$2,864.90

Coffee Loaders - Coffee Loader

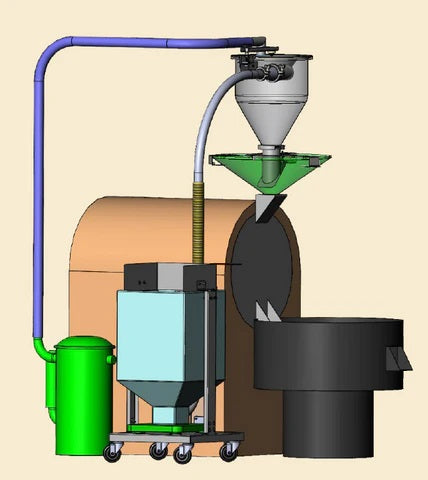

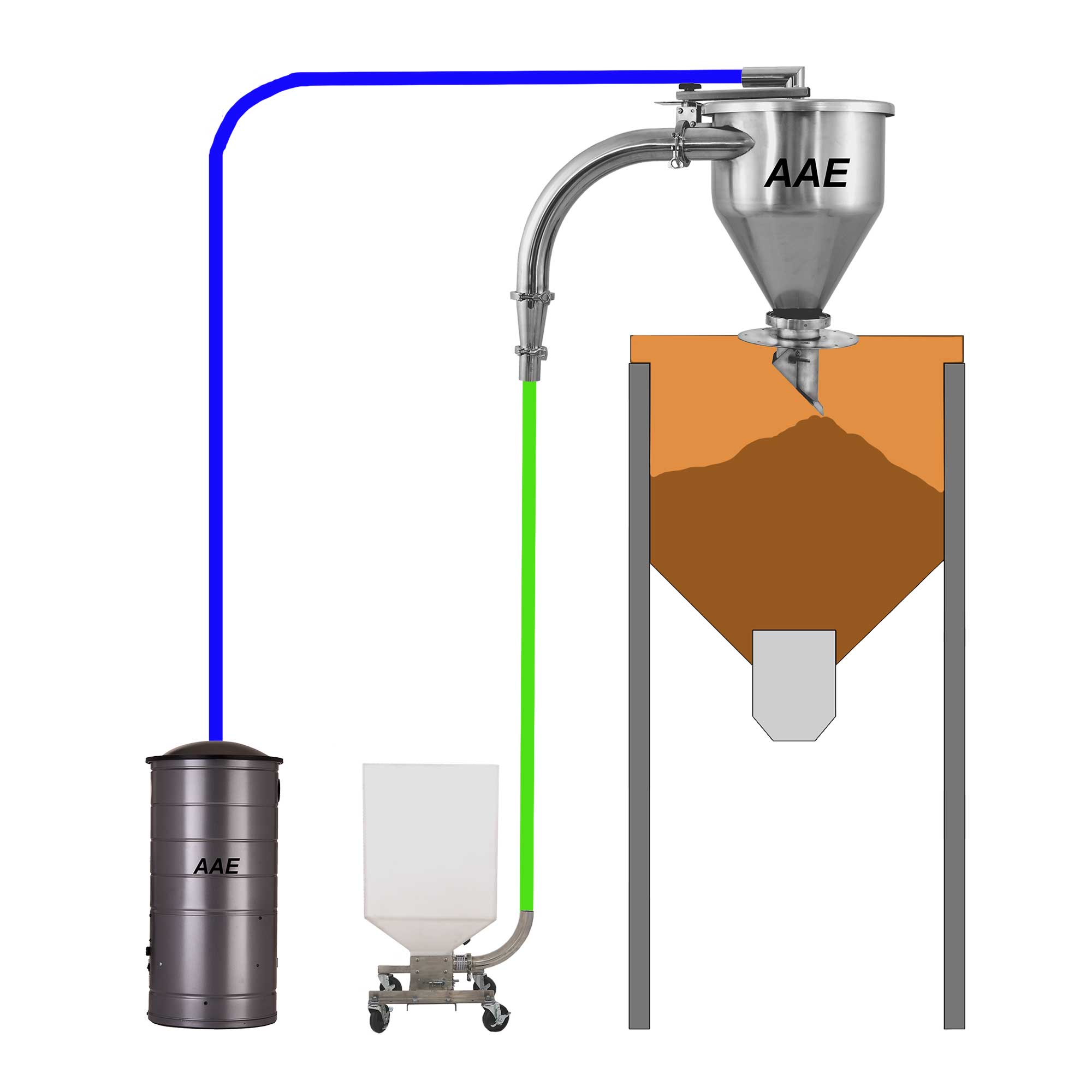

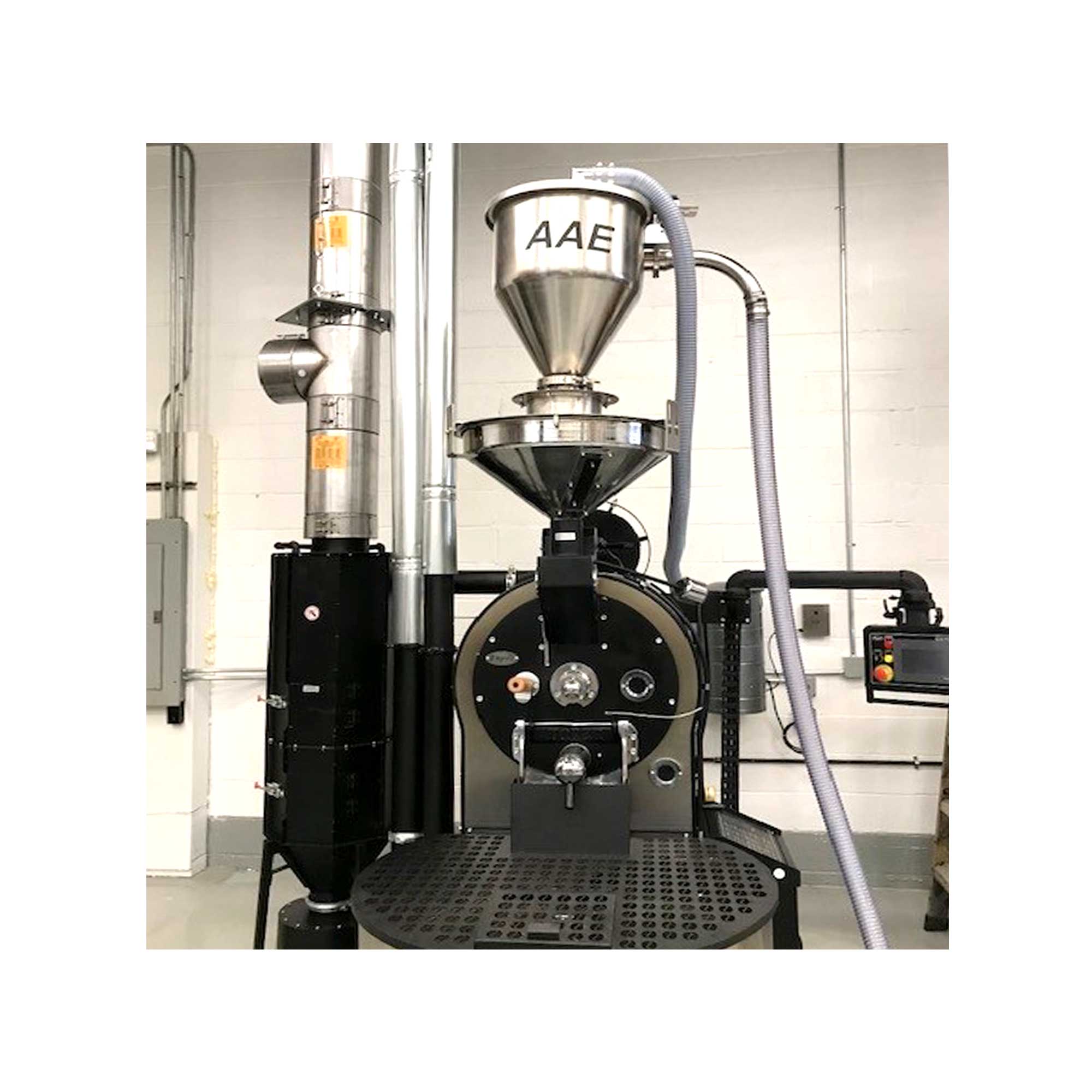

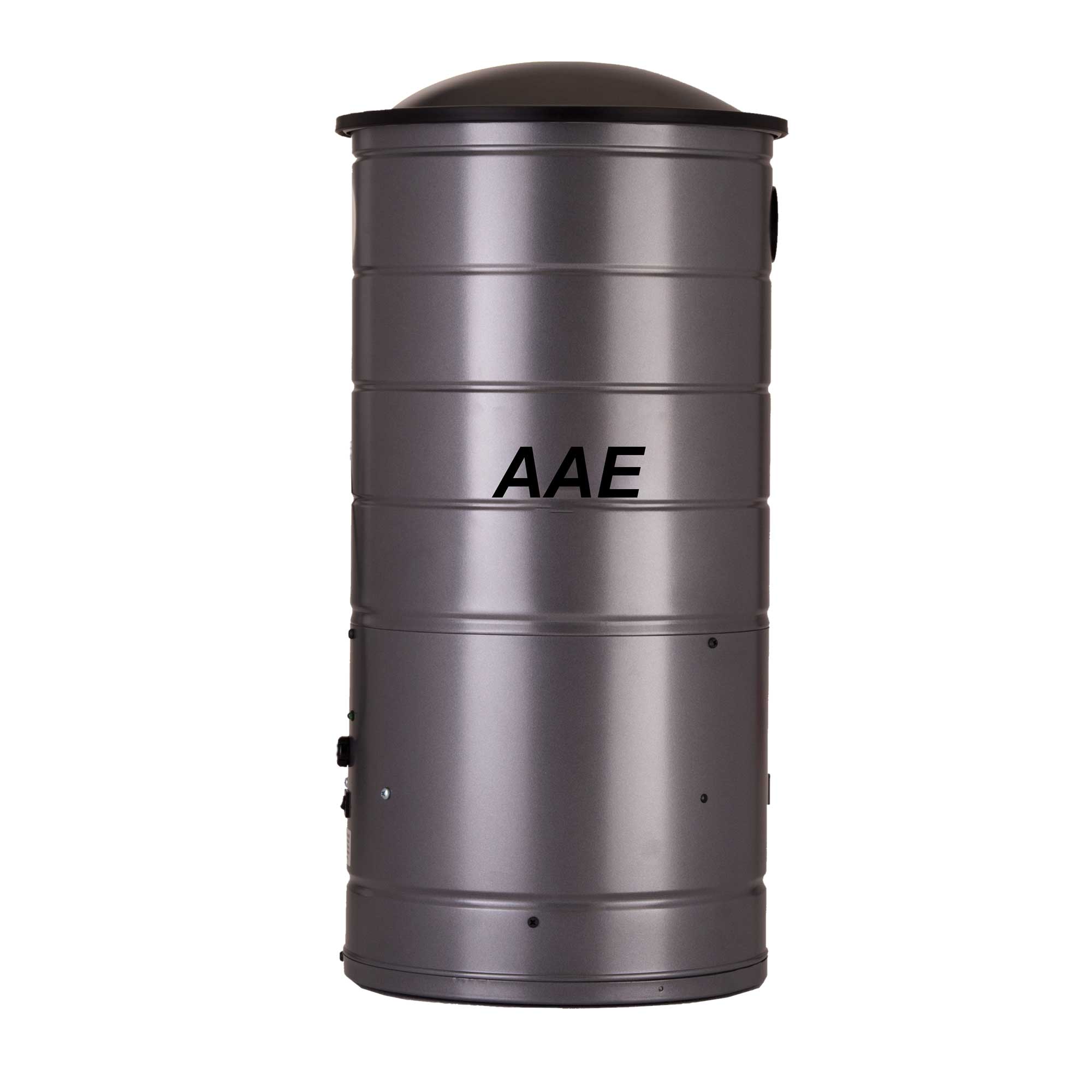

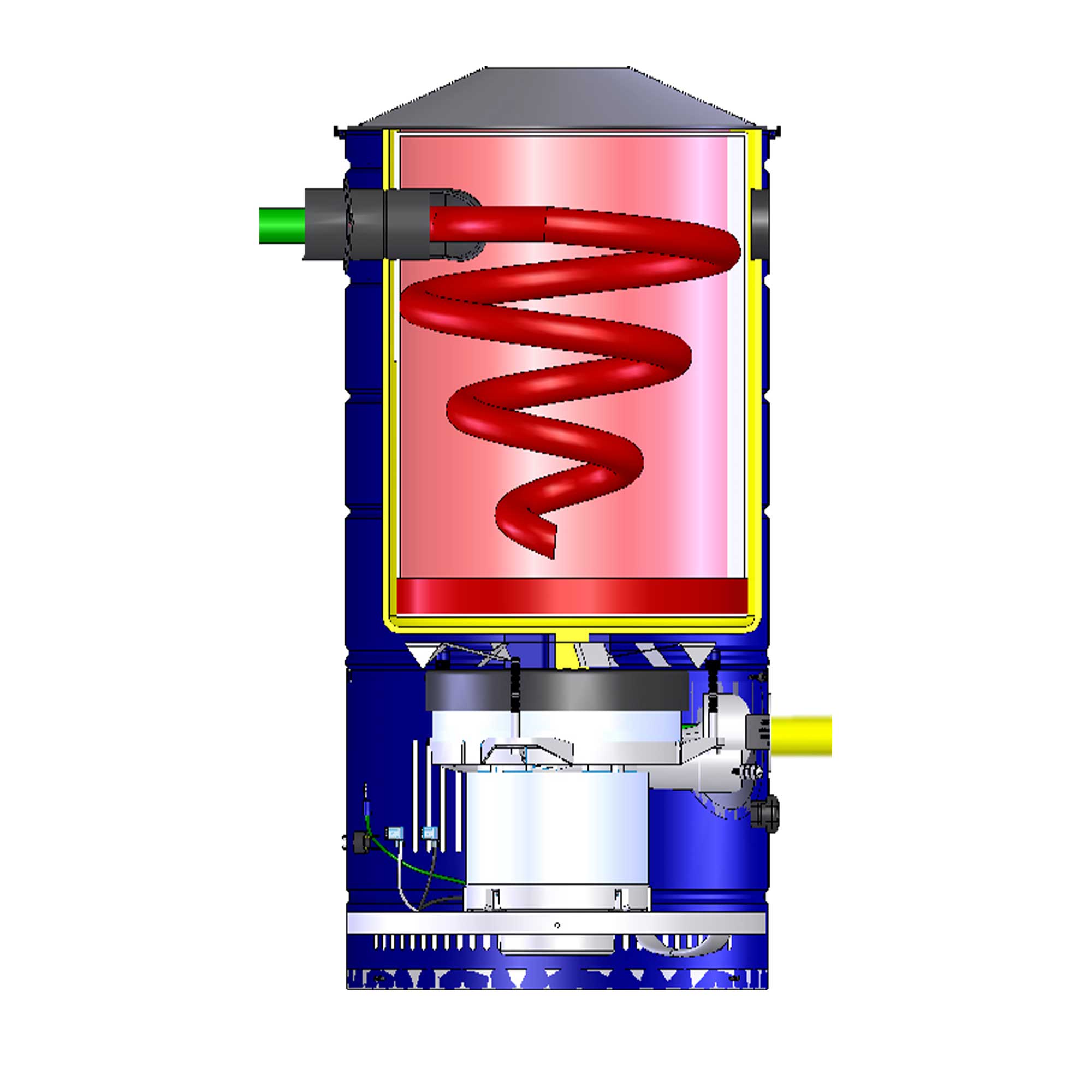

This coffee loading system made by Coffee Loaders - AAE can convey up to 2,000 lbs. per hour! The system comes with a 1.4 cubic foot vacuum chamber, a powerful remote vacuum with a HEPA filter, a remote on/off switch, flexible hose, an adjustable stainless steel wand, stainless steel fines separator, and a round roaster lid. Scale hopper sold separately.

APPLICATION
Loading green coffee beans into roasters, net weigh machines, VFFS, etc.

FEATURES
• Hopper Opening - 13" W x 12" L
• Heavy-duty stainless class 3A steel
• HEPA filter system

CAPACITY
2,000 lb. per hour / 50 lb. / 22 kg hopper

ELECTRICAL
110v @ 15 amps - Remote switch

MATERIAL
Heavy-duty stainless steel class 3A

MANUFACTURED
USA

MANUFACTURER LEAD TIME
Ships within one week

MANUFACTURER WARRANTY
2-year parts

OPTIONS
n/a

Automatic K-Cup Filling and Sealing Machine - Haitec HT-F20RS - 15-25 CPM
Automatic K-Cup Filling and Sealing Machine - Haitec HT-F20RS - 15-25 CPM
Automatic K-Cup Filling and Sealing Machine - Haitec HT-F20RS - 15-25 CPM
Automatic K-Cup Filling and Sealing Machine - Haitec HT-F20RS - 15-25 CPM
Click image to open expanded view
Automatic K-Cup Filling and Sealing Machine - Haitec HT-F20RS - 15-25 CPM
Automatic K-Cup Filling and Sealing Machine - Haitec HT-F20RS - 15-25 CPM
Automatic K-Cup Filling and Sealing Machine - Haitec HT-F20RS - 15-25 CPM
Automatic K-Cup Filling and Sealing Machine - Haitec HT-F20RS - 15-25 CPM

Automatic K-Cup Filling and Sealing Machine - Haitec HT-F20RS - 15-25 CPM

Price
$11,300.00

Automatic K-Cup Filling and Sealing Machine by Haitec - Model HT-F20RS



This fully-automatic coffee capsule filling and sealing machine is perfect for those looking to test the market on new products. The HT-F20RS has an upgraded high-speed motor and can quickly produce 15-25 k-cups per minute (depending on the type of cup and coffee). An affordable choice for your business! Excellent start-up machine into the K-Cup market!



APPLICATION
K-cup Filling and Sealing machine

FEATURES
• Filling accuracy ±0.2g
• Filled by Servo driven auger
• Sensor detection of cup, filling, lid and sealing

CAPACITY
15-25 cups/minute
0-20g filling weight

ELECTRICAL
220v // Single Phase  // 50/60Hz // 1200w

REQUIRED AIR PRESSURE
≥0.6Mpa, 0.1m ³ /min

MANUFACTURED
China

MANUFACTURER LEAD TIME
50 days

MANUFACTURER WARRANTY
One year

WEIGHT
140 kg / 309 lb

DIMENSIONS
820mm  x 602mm  x 1653mm
33" x 24" x 66"

OPTIONS
• Air Compressor
• Nitrogen Generator
• Nitrogen Injection Assembly

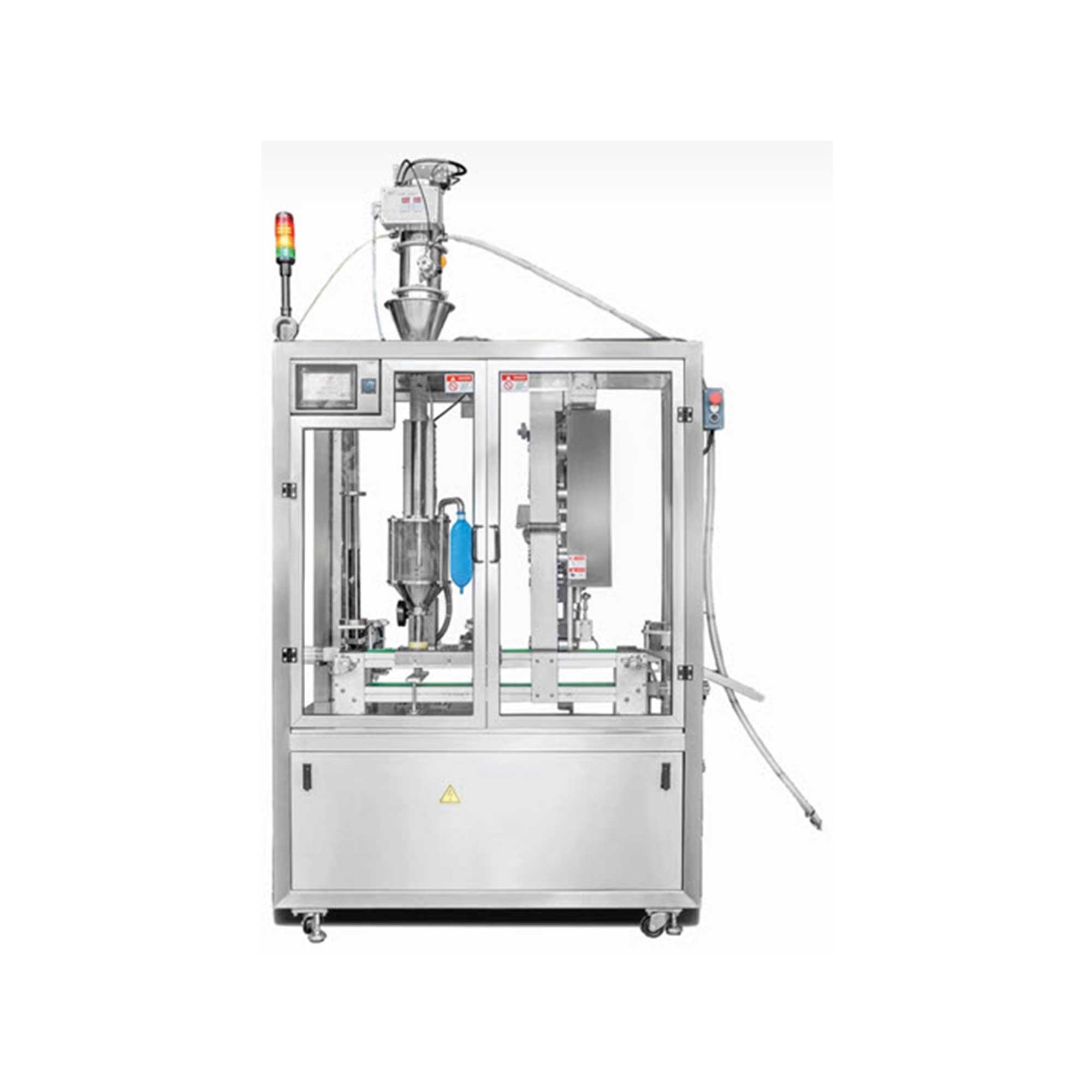

K-Cup Filling and Sealing Machine - Eastsign DCC-1500 Inline Style - 25 cpm

K-Cup Filling and Sealing Machine - Eastsign DCC-1500 Inline Style - 25 cpm

Price
$27,350.00

Single Lane K-Cup Filling and Sealing Machine 25 Cups per Minute

Eastsign Model DCC-1500

The DCC-1500 Eastsign's single-lane inline K-cup filling and sealing machine. Kicks out 25 cups per minute. Auger filling controlled Schneider servo motor.

Known for accurate filling, +/- 1.5%.

Nitrogen flushing is optional.

Heat sealing with pre-cut aluminum foil lids.

SPECS

TYPE
DCC Series Inline

PRODUCTION SPEED
25 cups/min

MAX FILLING CAPACITY
+/- 1.5%
Standard k-cup size 50mm-50.5mm

POWER
220v single phase/ 1.5kw

AIR
0.8 MPa or 116 psi
0.1 m3/min or 3.52 cfm

WEIGHT
1430 lbs / 710 kg

DIMENSIONS
77"  x 36" x 87"
1950mm x 900mm x 2200mm



K-Cup Filling and Sealing Machine - Eastsign RCC-1-3000 Rotary Style - 50 cpm

K-Cup Filling and Sealing Machine - Eastsign RCC-1-3000 Rotary Style - 50 cpm

Price
$32,800.00
Request a quote

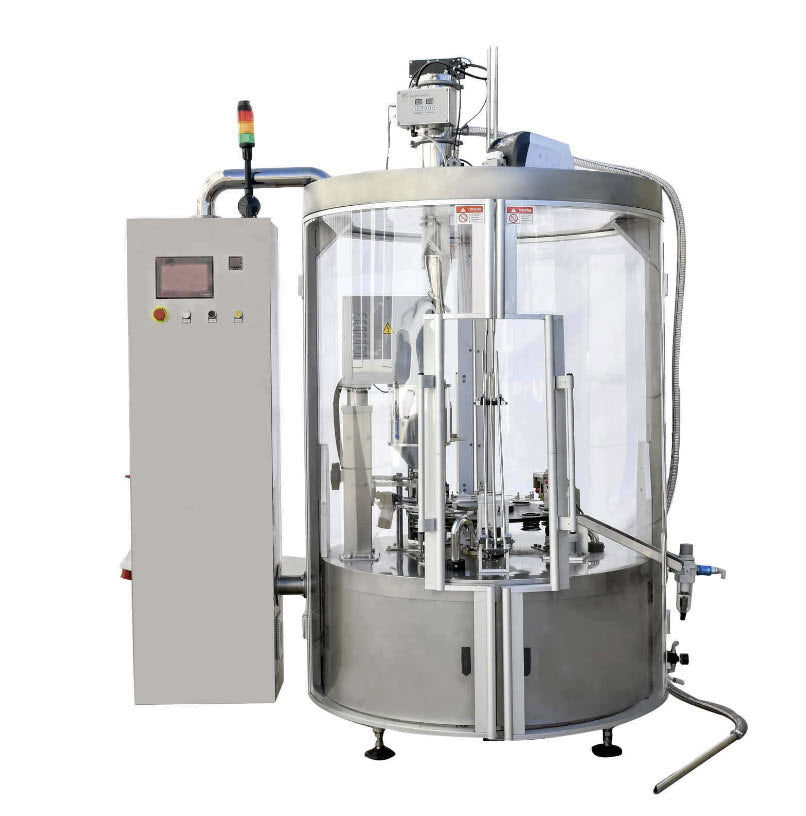

K-Cup Filling and Sealing Machine - Rotary Style 50 Cups Per Minute

Eastsign Model RCC-1-3000

Another high-quality K-Cup filling and sealing machine by Eastsign. Compact rotary design for coffee, tea or other powders. Has nitrogen flushing and roll film sealing options. Auger filling controlled by Schneider servo motor. Also has a transparent hopper.

Heat sealing with pre-cut aluminum foil lids.


SPECS

TYPE
RCC Series Rotary

PRODUCTION SPEED
50 cups/min

MAX FILLING CAPACITY
+/- 1.5%
Standard k-cup size 50mm-50.5mm

POWER
220v single phase / 2.5kw

AIR
0.8 MPa or 116 psi
0.1 m3/min or 3.52 cfm

NITROGEN
Comes ready

WEIGHT
710kg / 1562lbs.

DIMENSIONS
1860mm x 1750mm x 2850mm
74" x 69" x 113"
