MPE GPC-140 Industrial Grinder

MPE provides highly engineered precision grinders, conveyors and turnkey systems with unwavering support, allowing our customers around the world to produce best in class results.

Price
price
$0.00

Pricing is quoted based on specific options chosen.

Certain equipment offerings have options, shipping, and handling that require additional detail for quoting.

Request a quote

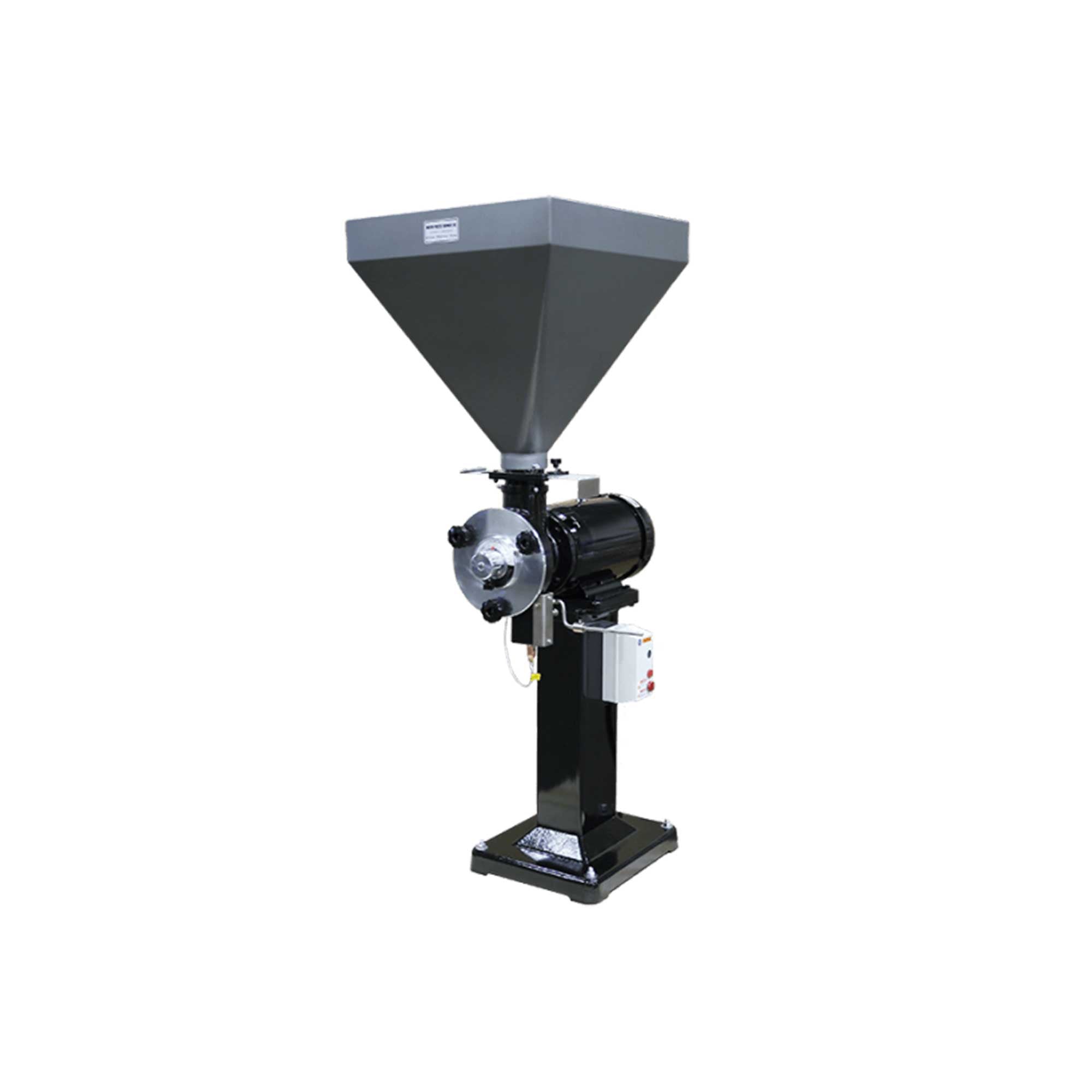

MPE GPC-140 High Capacity Precision Disc Grinder

The Modern Process Equipment GPC-140 is an industrial-grade disc grinder designed for long, heavy-duty use. Its unique "diamond-hard" 7.1" grinding discs are precision-cut to ensure an even, cool grind, helping give your coffee the perfect flavor and performance.



APPLICATION
Heavy Duty Shop Grinder for Gourmet, Espresso, Filter

FEATURES
• Grind range of Espresso - Coarse [200-3000 microns]
• Designed for fast and easy cleanout
• Bag holder tray (standard)
• Grind adjustment can be made while unit is in operation

CAPACITY
Hopper Capacity: 75 lb. (4 cu-ft) capacity stainless steel hopper

OUTPUT
Espresso (200 – 450 μm): Up to 440 lb/hr (200 kg/hr)
Filter (500 – 1,000 μm): Up to 1,000 lb/hr (450 kg/hr)

GRINDING DISKS
7.1 inch diameter (180 mm) “diamond hard” grinding discs

ELECTRICAL
220v // 5 HP [3.7 kW] // 3 phase // 50 or 60 Hz available

MANUFACTURED
USA

MANUFACTURER LEAD TIME
2 weeks

MANUFACTURER WARRANTY
1 year

OPTIONS
• Alternative hopper sizes and construction (stainless steel)
• Large tote container for ground product collection
• Hopper grate magnet
• Economical disc re-sharpening

ADDITIONAL INFORMATION AVAILABLE BELOW


GPC-140 COFFEE GRINDER HIGH CAPACITY DISC-STYLE COFFEE
GRINDER FOR ALL GRIND TYPES
The Model GP-140 is an industrial disc-style grinder
designed to run continuously and deliver a superior coffee
grind. The GP-140 uses 7.1 inch diameter “diamond hard”
grinding discs that are precision-cut to optimize cutting
action with infinite adjustment control, resulting in a cool,
uniform coffee grind for optimal brew performance.
– High Capacity
– Infinite grind adjustment
– Easy to clean and operate
– “Diamond hard” grinding discs

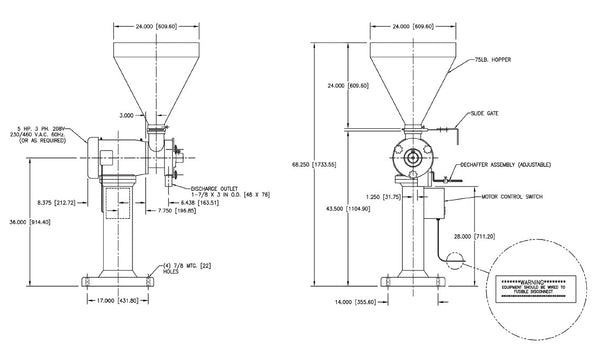

SPECIFICATIONS

Disc Size: 7.1 inches [180 mm] in diameter
Grinding Discs can be re-sharpened
Motor: 5 HP [3.7 kW] / 3 phase / 50 or 60 Hz available
Grind Range: Espresso - Coarse [200-3000 microns]
Capacity: 400-1000 lbs/hr [180-450 kg/hr], espresso to coarse respectively


FEATURES & OPTIONS

– Designed for fast and easy cleanout – By simply removing three dial plate knobs, the entire grinding chamber can be removed and cleaned in minutes.
– Simple maintenance and operation – With few moving parts, maintenance and
operation are easy.
– Various grinding discs offered – Gourmet, flavored, and high capacity.
– Sharp teeth and ultra-hard metal alloys ensure both performance and disc
longevity. Economical re-sharpening also available.
– Hopper Size: 4 cu-ft (75 lb)
– Bag holder tray (standard) or larger tote container (optional) for ground
product collection.
– Hopper grate magnet (optional)

About Modern Process Equipment Corporation

Founded in 1957 with worldwide headquarters in Chicago, USA, Modern Process Equipment Corporation, a family-owned business, has established a reputation for designing, manufacturing and offering unparalleled products and services.

MPE is dedicated to leading in the invention, development, and manufacture of our industry’s most advanced processing equipment, including grinders, conveyors, and total system solutions. We translate these offerings into value for our customers through our professional solutions and services.

We bring the same sense of commitment home by creating a workplace where people are inspired to be the best that they can be both professionally and personally.
