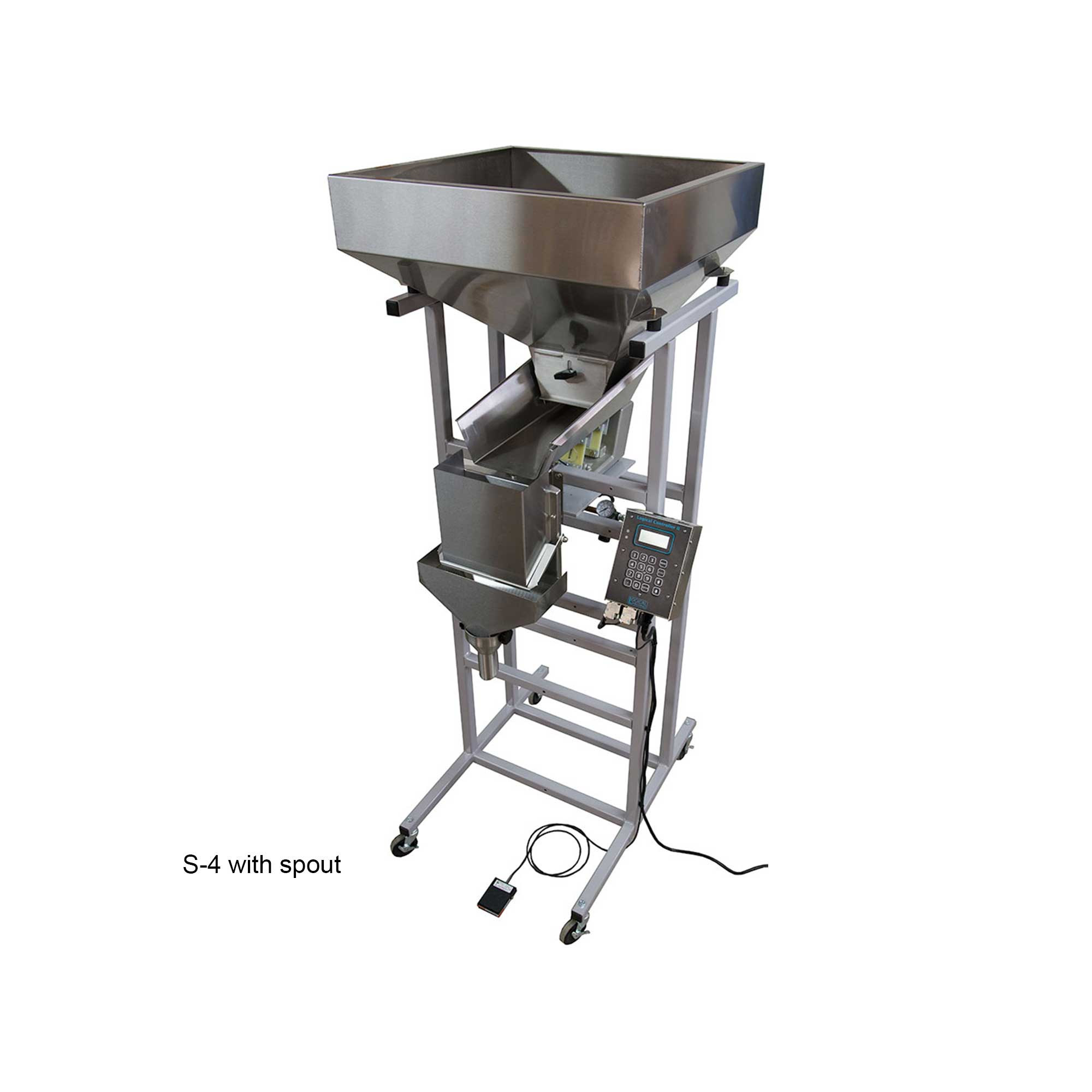

Logical Machines S-4 Semi-Automatic Scale System

The Logical S-4 Semi-Automatic Scale System is an ideal choice for businesses transitioning from manual scooping to automation. This machine's supply hopper, electromagnetic vibratory feeder, weigh hopper, and controller work together to deliver accurate, automated filling of your bulk product.

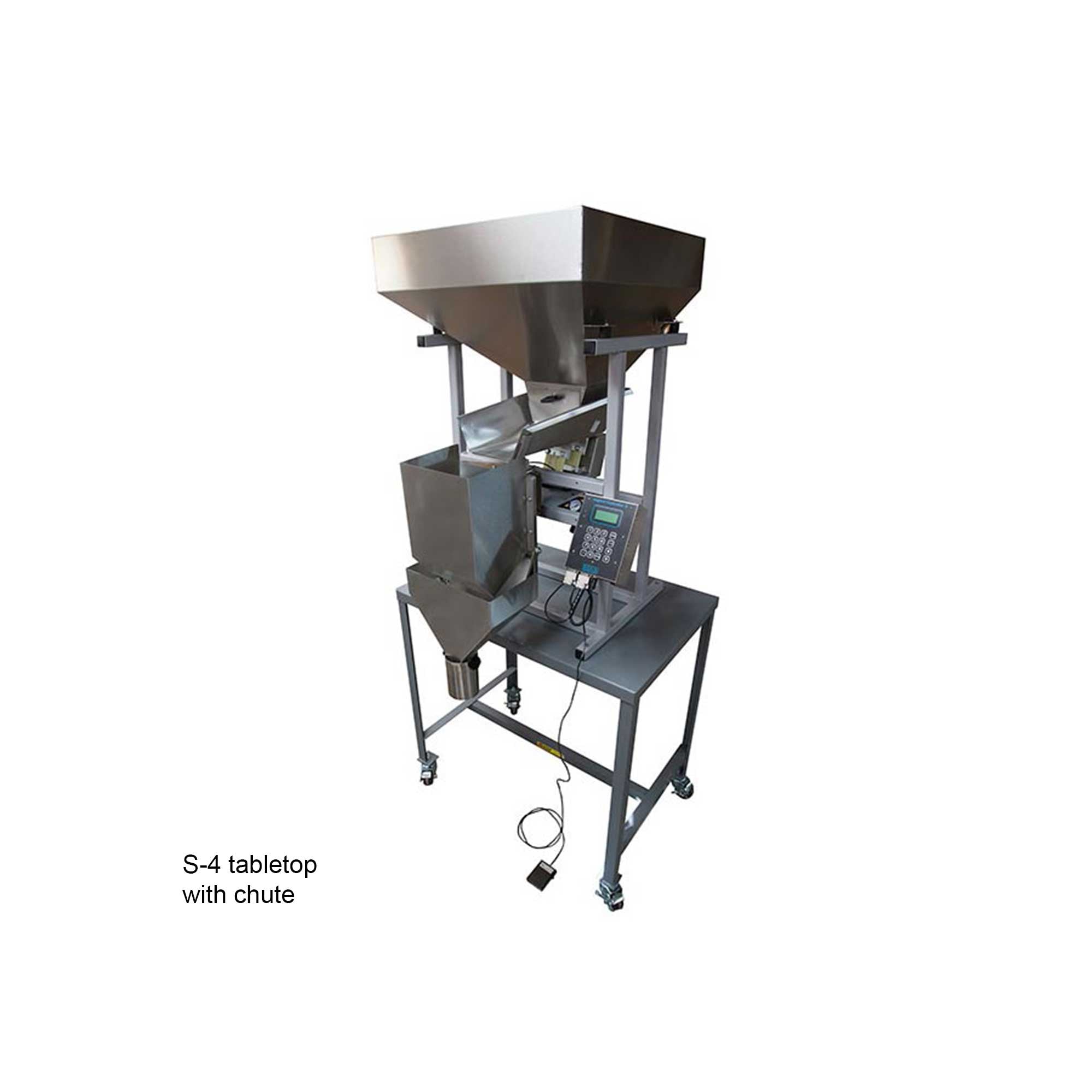

When the target weight is reached, the controller stops the feeder and the weigh hopper opens to quickly and accurately fill your container. Once the bag is sealed, a new fill cycle is ready to begin. Can set on a table top or included metal powder-coated chassis.

Simply select your weigh hopper size for large or small, a discharge funnel to match, and the spout(s) for your bag(s) application.

The control panel handles up to 100 programs!

Note: This machine requires a small air compressor to operate door pneumatics.

Call us @ 855.585.2500 or call/text Rick direct @ 949.289.8083 for additional details and next steps!

APPLICATION
Weigh Fill machine

FEATURES
• Readout to 1 gram or .001 lbs.
• Controller range up to 10 lbs.
• Up to 800 fills / hour

CAPACITY
3.5 cu ft. / Scale total weight 135 lbs.

ELECTRICAL
120V // 60 Hz // 2 amps

AIR PRESSURE (required)
<0.25 cfm air supply at 30psi if equipped with optional dribble feed gate.

MANUFACTURED
USA

MANUFACTURER LEAD TIME
2 - 3 weeks

MANUFACTURER WARRANTY
1 year

OPTIONS
• Fill Spouts for flat bag, 4 sided bag, or bottle/jar applications
• Dribble Feed Gate (for fine powders)
• Supply Hopper Vibration (for grounds application)
• Adjustable Supply Hopper Baffle (for heavy, dense products)
• 240V // 50Hz

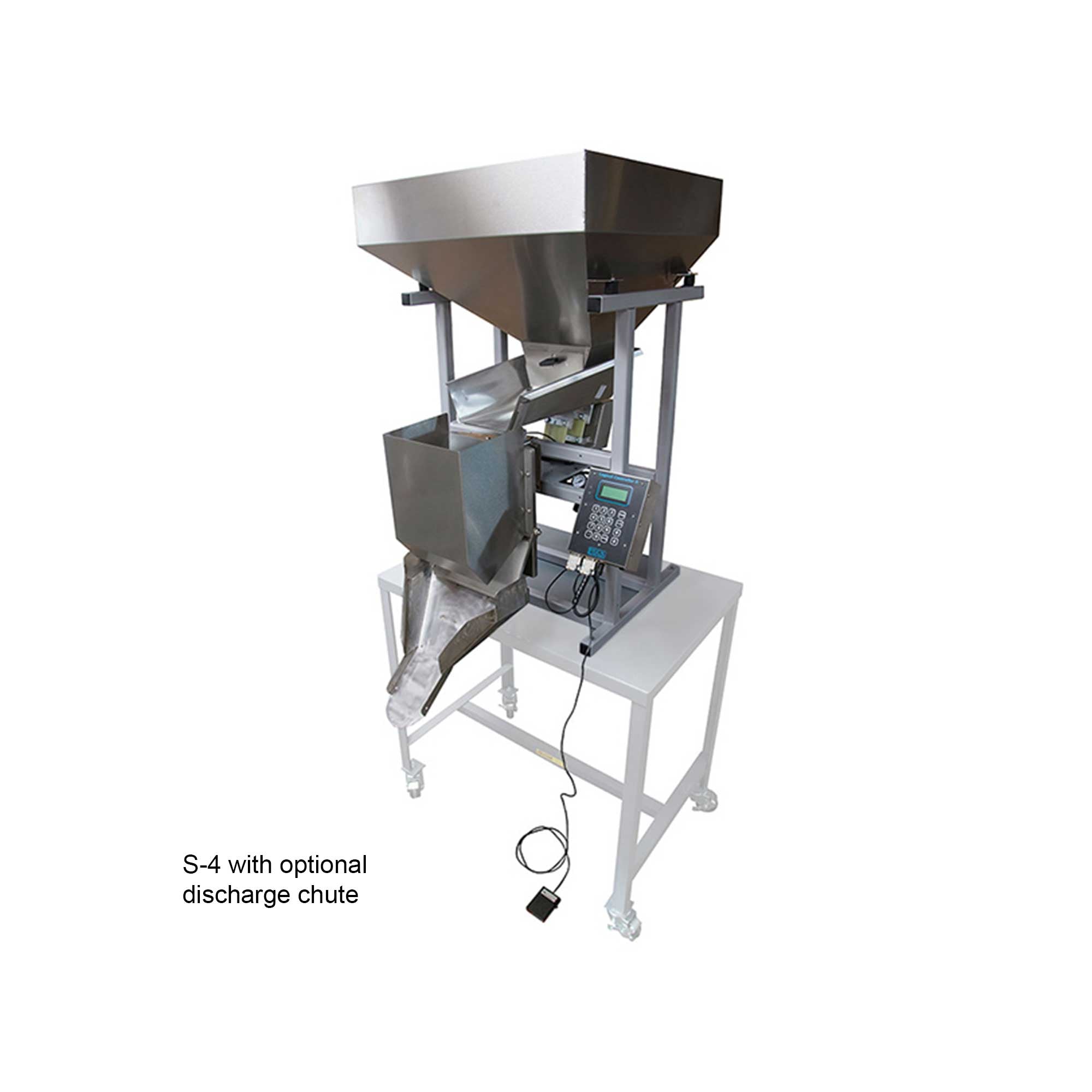

• Standard Steep Sided Discharge Funnel or Discharge Chute (for sticky product applications)

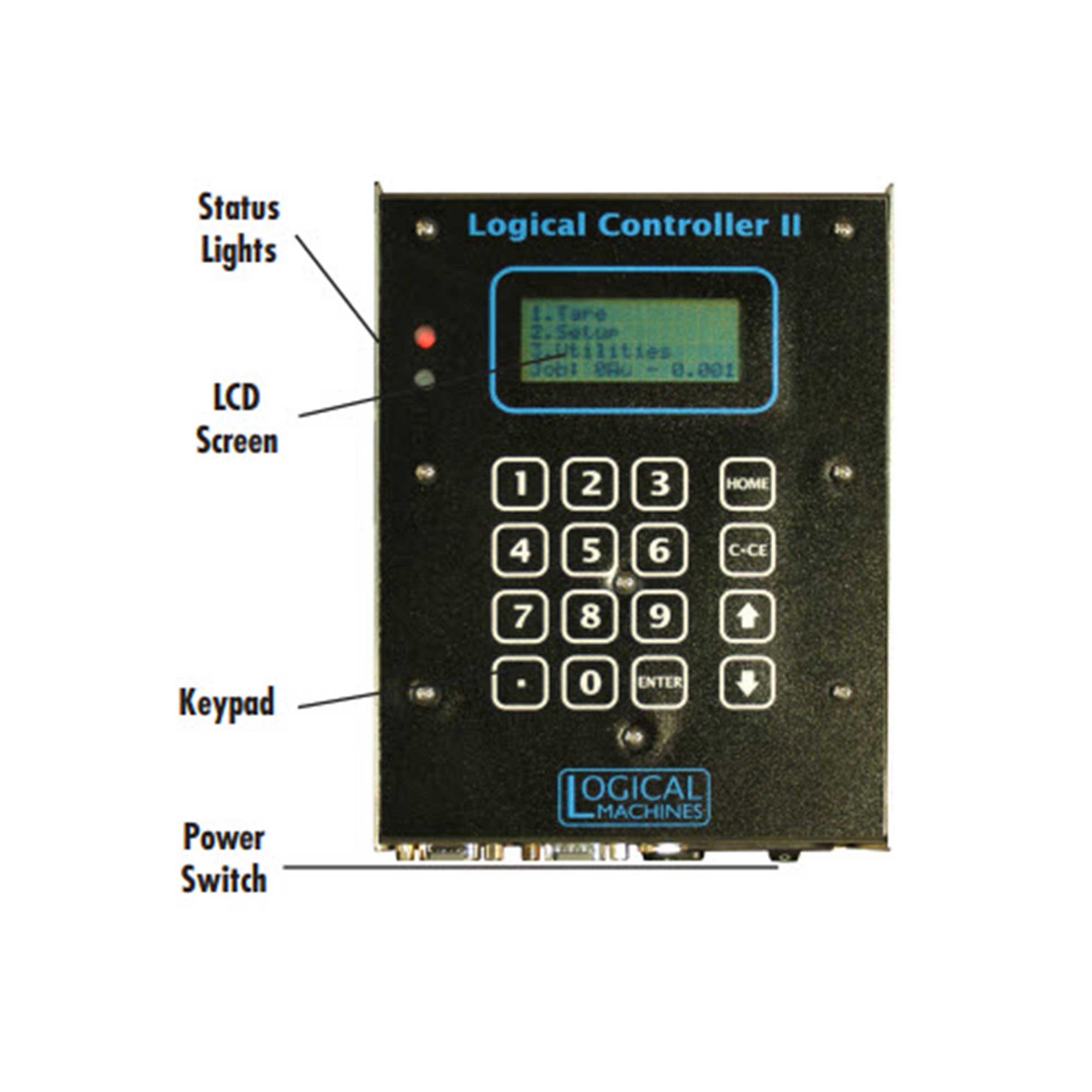

The standard S-4 includes the standard weigh hopper, small discharge funnel and Logical Controller II. Options above are additional.

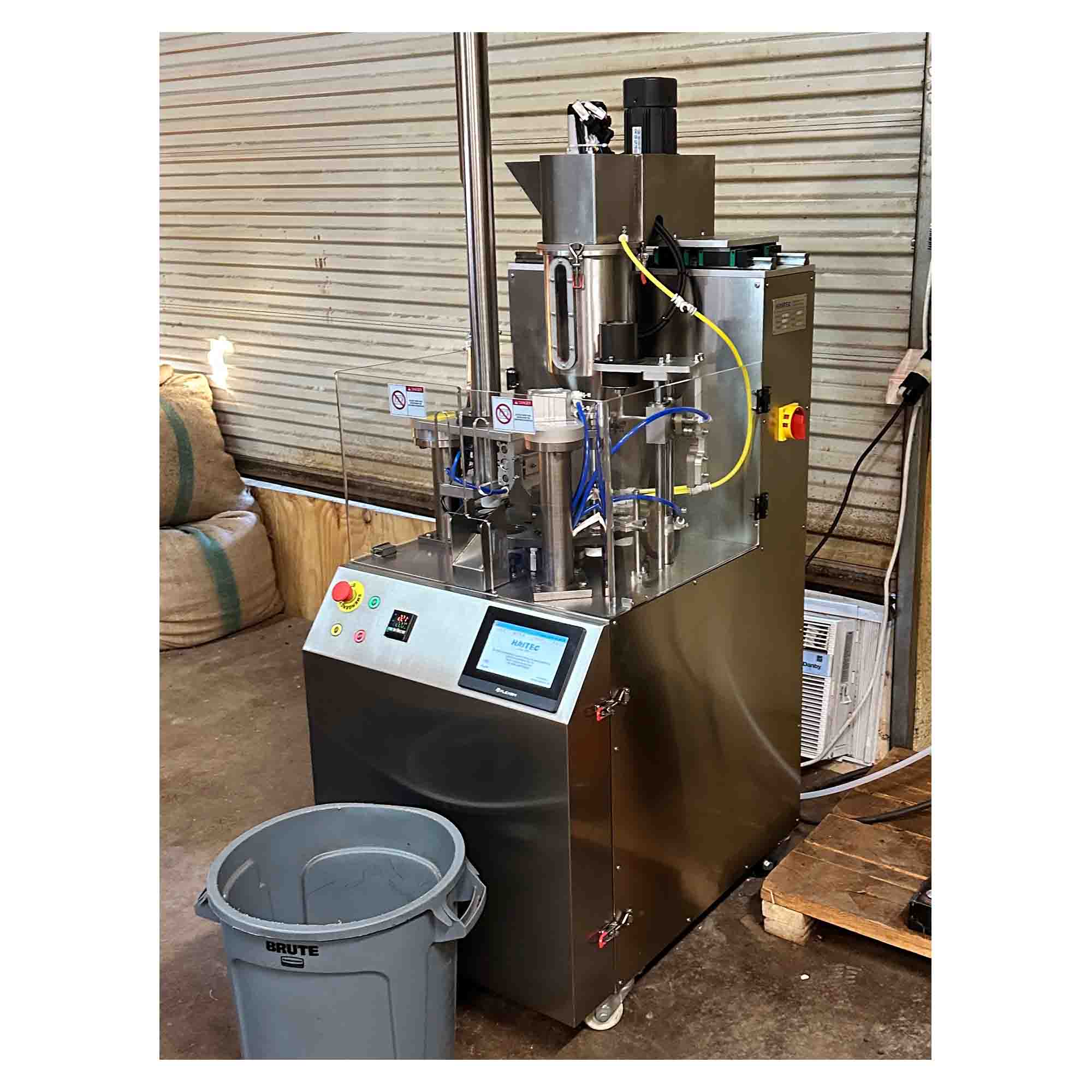

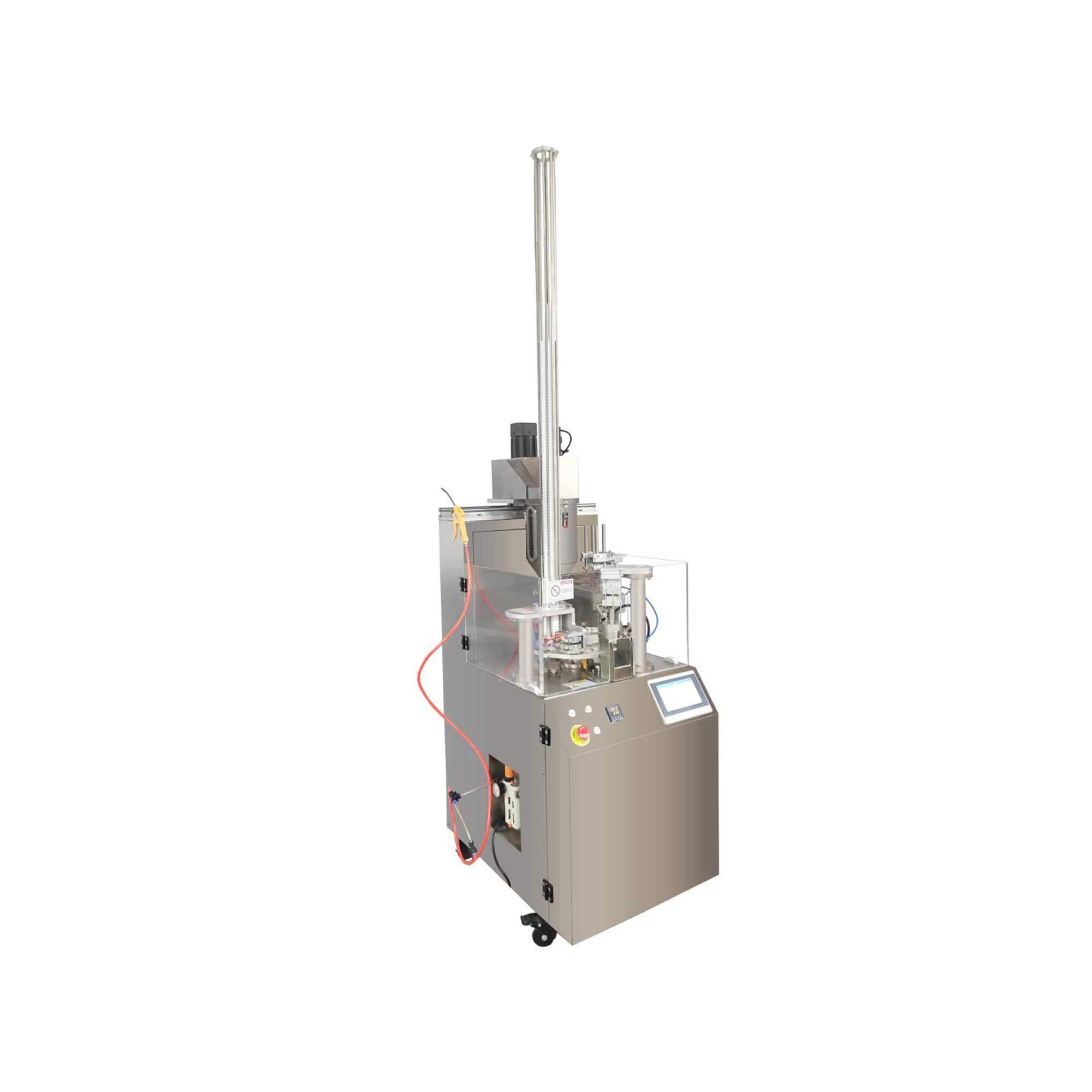

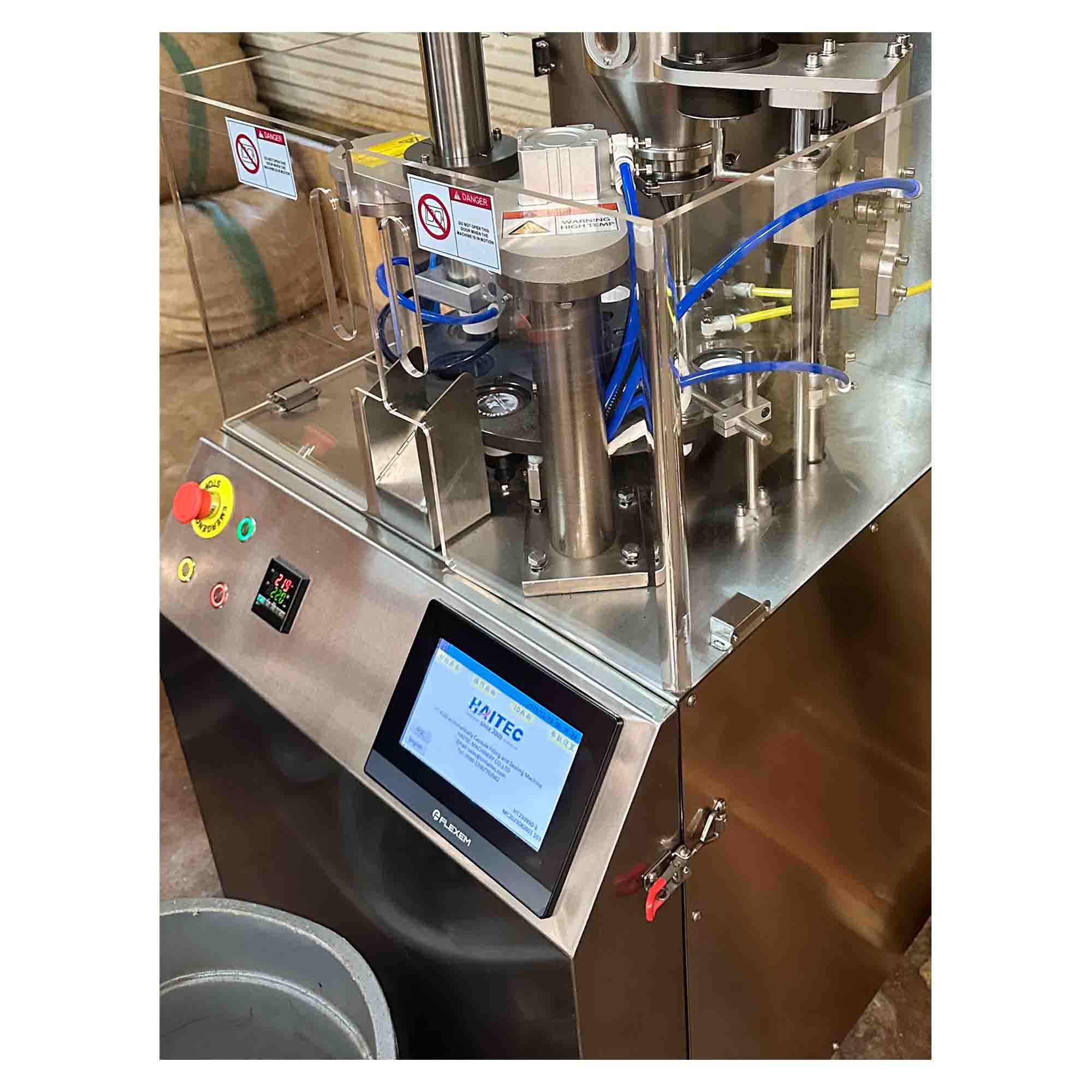

Automatic K-Cup Filling and Sealing Machine by Haitec - Model HT-F20R

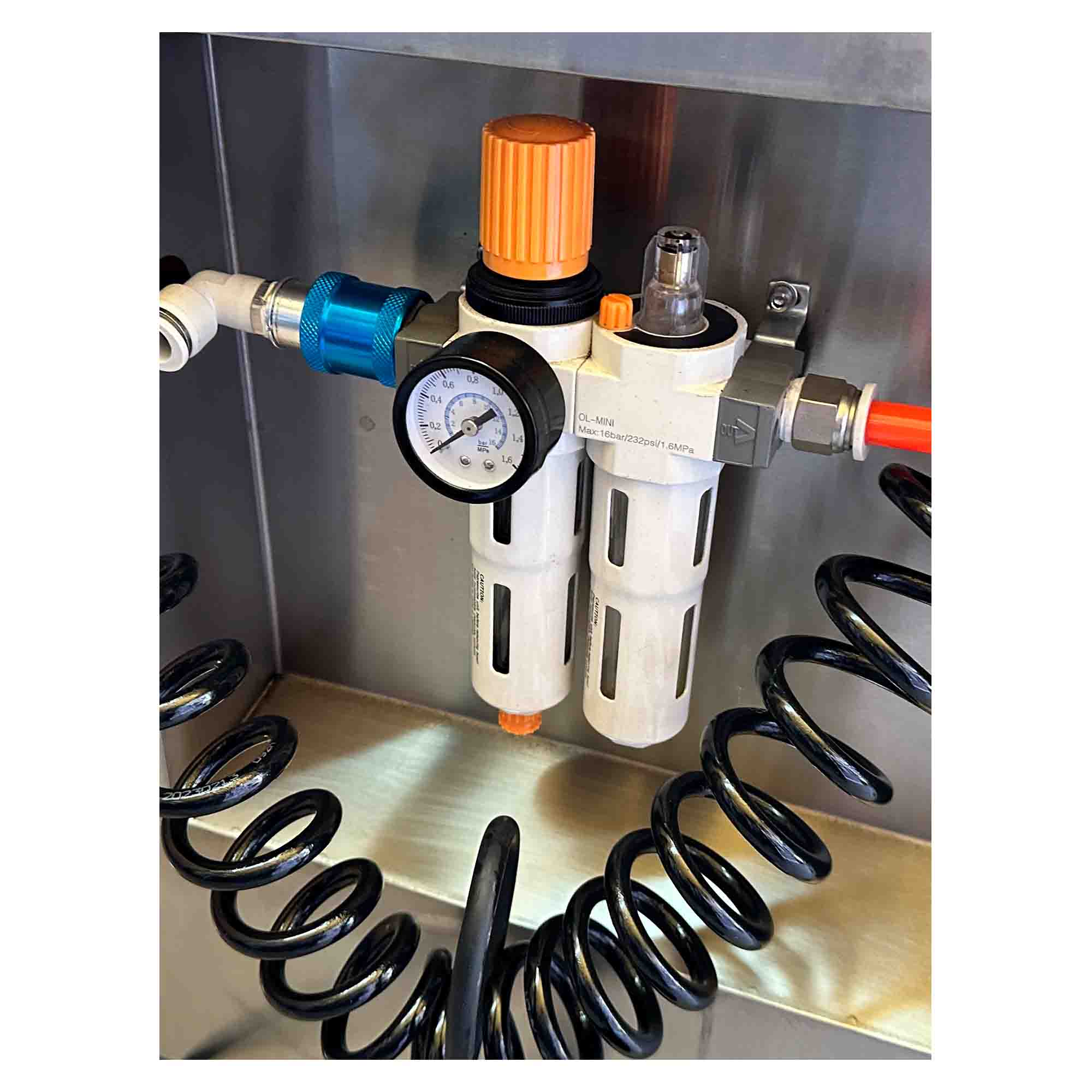

We've vetted this machine out in-person and have been extremely impressed with its quality, features, and performance. It's a "plug-and-play" situation for sure. Wipe it down (machine oil protection for shipping), clip the nylon tie-straps that secure the moving pieces during transport, plug in 1/2" air line, and change out the plug to a USA 30amp 3 wire 220v, and off you go!

Cup holder can handle about 150 cups, coffee hopper (with agitator and auger) about 5 lbs. of ground. Lid receptacle about 500. I watched it kick out 25 cups a minute non-stop. Talk about a sweet set up!

This fully-automatic k-cup filling and sealing machine is perfect for those looking to test the market on new products. The HT-F20RS has an upgraded high-speed motor and can quickly produce 12-15 k-cups per minute (depending on the type of cup and coffee). Made from the same solid, quality parts as Haitec's larger machines.

An affordable choice for your business! Excellent start-up machine into the K-Cup market!

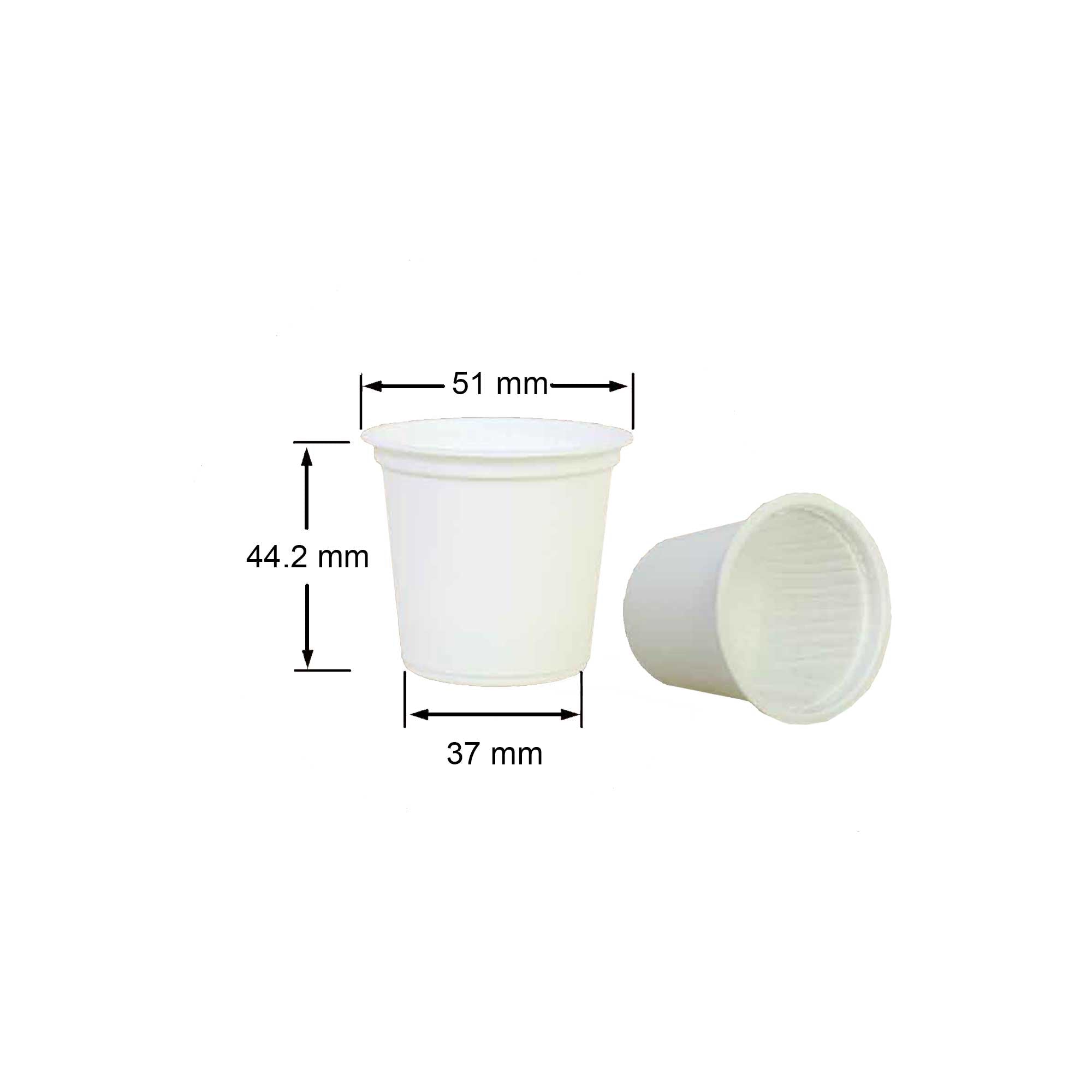

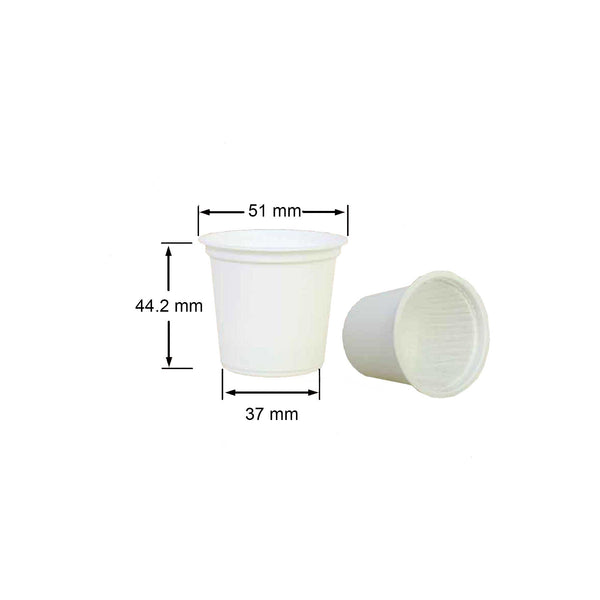

This machine is compatible with 51mm diameter pre-filtered k-cups. Custom cup mold inserts are available for other sizes.

Click for quote, call us @ 855.585.2500 or call/text Rick direct @ 949.289.8083 for additional hands-on details and next steps to get one of these to your roastery!

Make sure to watch the video review below!

APPLICATION
K-cup Filling and Sealing machine

FEATURES
• Filling accuracy ±0.2g

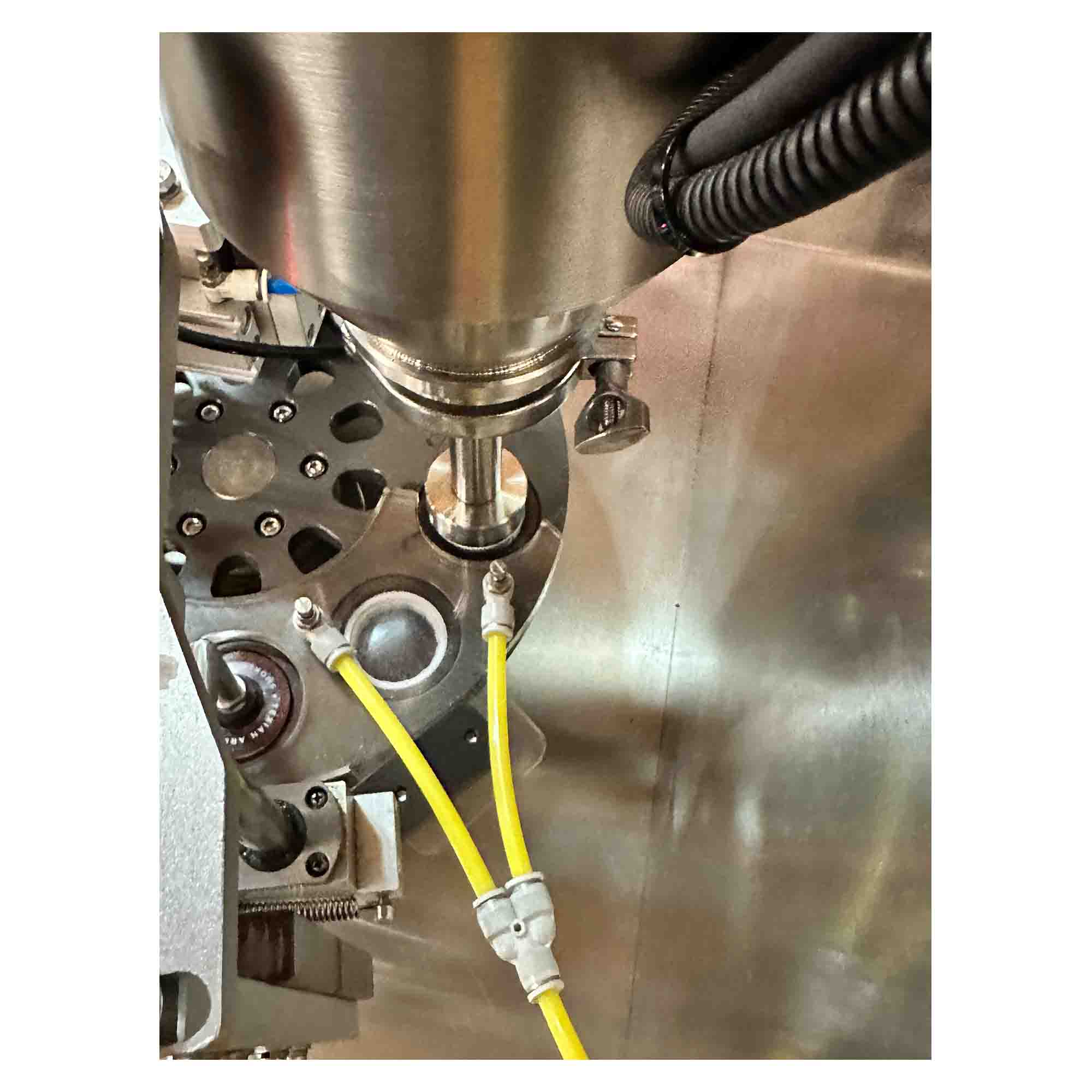

• Filled by Servo driven auger

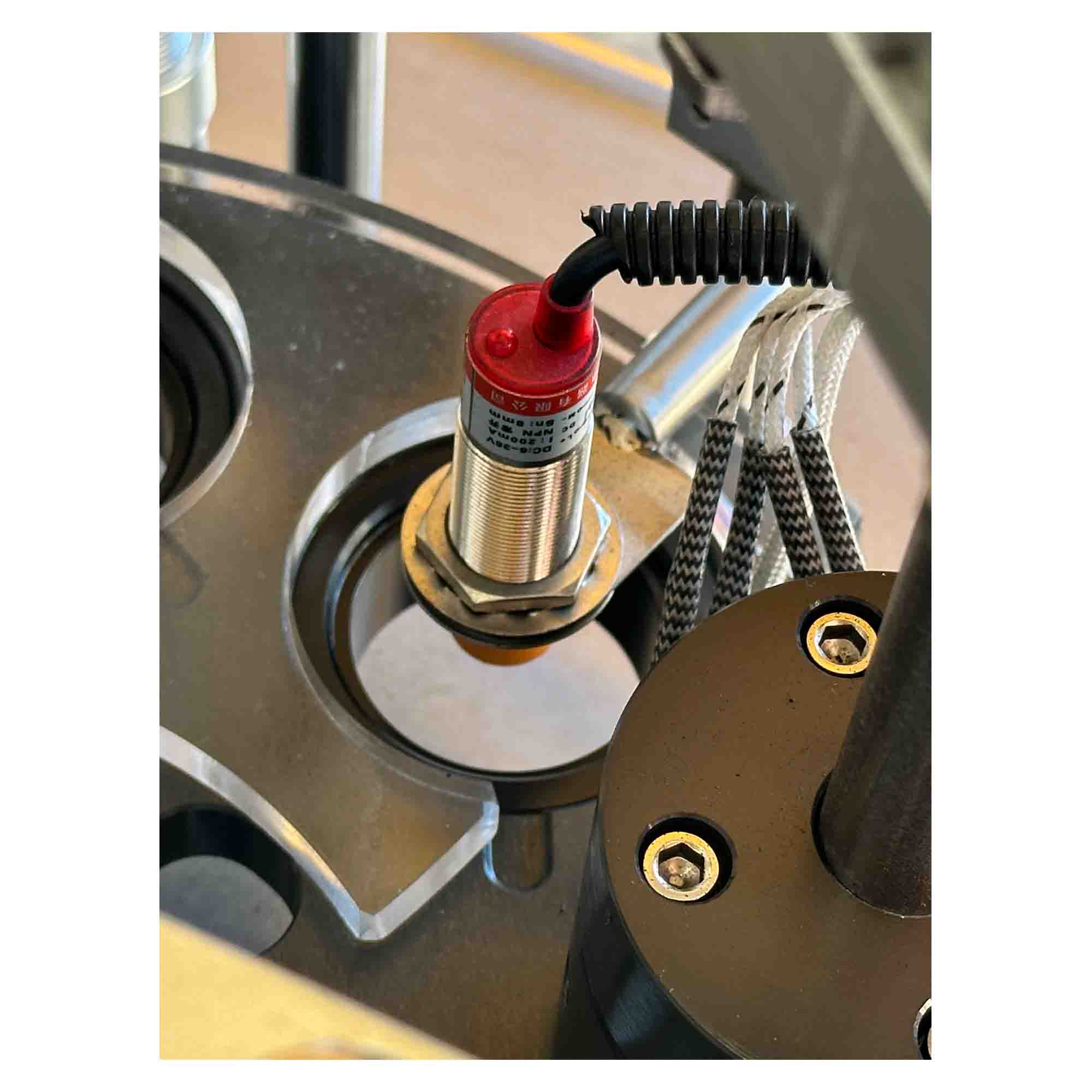

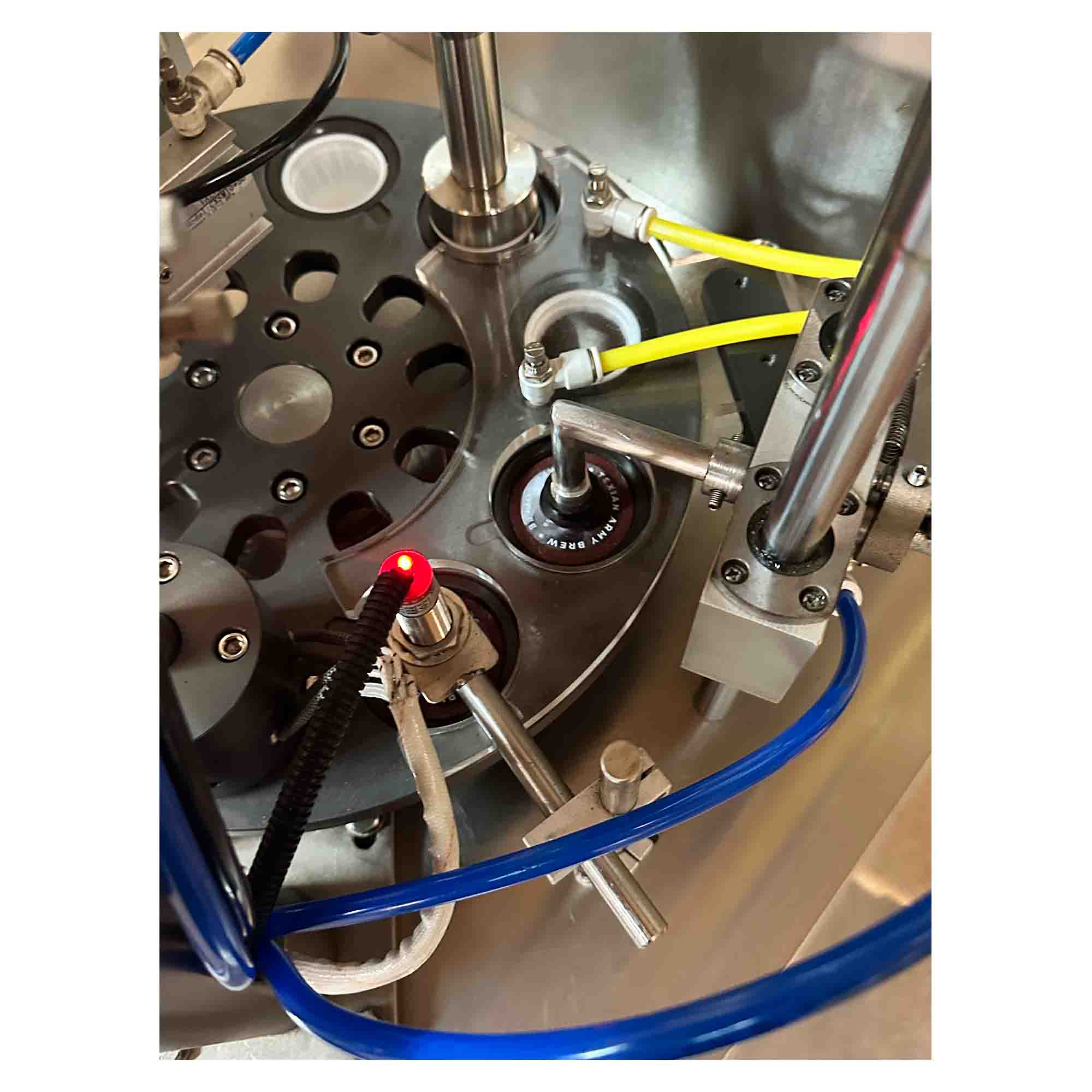

• Sensor detection of cup, filling, lid and sealing

CAPACITY
12-15 cups/minute
8g-14g course coffee filling weight

CUP DIMENSIONS
51mm diameter

ELECTRICAL
220v // Single Phase  // 50/60Hz // 1200w

REQUIRED AIR PRESSURE
90psi // 4.5 cfm // Minimum 20 gallon reserve tank

MANUFACTURED
China

MANUFACTURER LEAD TIME
50 days

MANUFACTURER WARRANTY
One year

WEIGHT
309 lb.
(140 kg)

DIMENSIONS
33" x 24" x 66"
(82cm  x 60cm  x 165cm)

MANUFACTURED
China

MANUFACTURER LEAD TIME
50 days

MANUFACTURER WARRANTY
One year

WEIGHT
120 kg / 265 lb

DIMENSIONS
820mm L x 602mm W x 1653mm H
33" x 24" x 66"

OPTIONS
• Air Compressor
• Nitrogen Generator
• Nitrogen Injection Assembly
