Industrial Burr Grinder Model "B"

Electrical Option:
Price
price
$7,657.00

Certain equipment offerings have options, shipping, and handling that require additional detail for quoting.

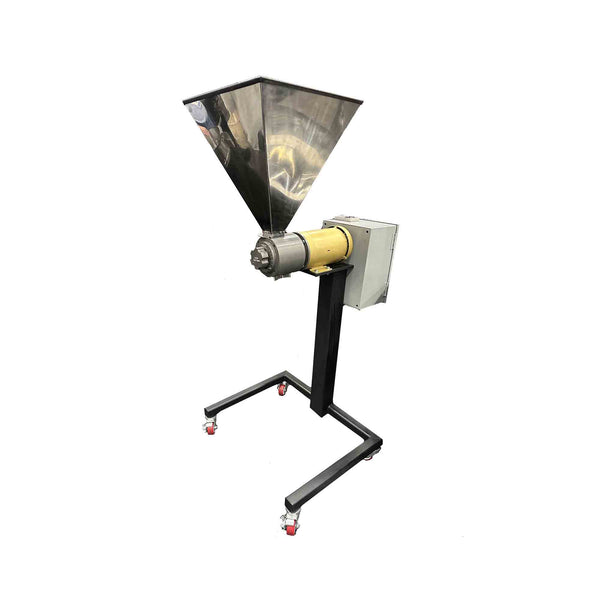

Model B Plate Mill Burr Grinder

Made in USA! Medium-duty grinder with a heavy-duty motor and motor speed controls, the Model B burr grinder is the choice for big grinding jobs. Comes with a 25 lb. hopper. Puts out up to 7lb. p/minute of coffee (based on grind).

FOR USE IN
Heavy-duty shop grinder

OUTPUT, LBS/MIN
4 - almost 7 lbs/minute (based on grind size)

MAX DAILY OUTPUT, LBS (8-HR SHIFT)
Regular Grind: 400 lbs/hr; 3200 lbs/day
Filter Fine: 250-300 lbs/hr; ~2400 lbs/day

MAX OPERATING CYCLE
Continuous grinding

HOPPER CAPACITY
25 lbs

GRINDING INTO
Ground material container; base designed for mobile container

GRIND RANGE
Filter Fine to Regular Grind

FEATURES
Designed for 50,000 lb/set with proper care
Heavy-duty motors w/UL 508-A approved industrial control system with speed controls
Adjustable legs for ease of movement and cleaning
Chaff density control gate

POWER
120 V / 24 amps
208 V / 15 amps
230-240 V / 14 amps

GRINDING DISC DIAMETER & MATERIAL
120mm (4.75") 0.8" knife-hardened steel burrs

COLORS
Black & steel

CERTIFICATIONS
UL

DIMENSIONS (DxWxH, inches)
30" x 26" x 60"

WEIGHT, LBS
250 lbs with bag holder

MANUFACTURED
USA

MANUFACTURER LEAD TIME
1 week

MANUFACTURER WARRANTY
1 year


ADDITIONAL INFORMATION AVAILABLE BELOW


SPECIFICATIONS

The Model B Burr Grinder is designed to give the user optimal
control over the grinding of coffee with motor speed controls and a
hand knob for simple grind adjustments.
• Dimensions: 60 “ x 26” x 30” (HxWxD)
• Weight: 250 lb with bag holder
• 4.75” knife-steel hardened 0.8” thick burs
• Designed for 50,000 lbs/set with proper care
• 25 lb stainless steel hopper
• Averages 250-300 lb/hr on filter fine
• Averages 400 lb/hr for regular grind coffee


FEATURES

• Heavy-duty motors with UL 508-A approved industrial control
system with speed controls
• Upgrades available to an all stainless design
• Adjustable legs for ease of movement and cleaning
• Machined head from solid billet aluminum to reduce heat
• Main shaft includes ball bearings
• Hand knob allows simple grind adjustments
• Grinder base design allows for mobile container
• Includes chaff density control gate
• Replacement burrs available
• Heavy-duty motors with UL 508-A approved industrial control
system with speed controls
• Upgrades available to an all stainless design
• Adjustable legs for ease of movement and cleaning
• Machined head from solid billet aluminum to reduce heat
• Main shaft includes ball bearings
• Hand knob allows simple grind adjustments
• Grinder base design allows for mobile container
• Includes chaff density control gate
• Replacement burrs available


ELECTRICAL OPTIONS
• 120V / 24 amps
• 208V / 15 amps
• 230-240V / 14 amps
