Automatic K-Cup Filling and Sealing Machine - Haitec HT-F20R "Mini" - 12-15 CPM

The Haitec HT-F20R ensures precise and consistent filling and helps you enter into the K-Cup marketplace with an affordable automated sealing & filling machine.

Price
price
$11,900.00

Certain equipment offerings have options, shipping, and handling that require additional detail for quoting.

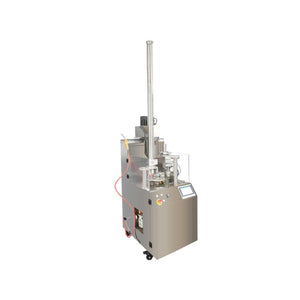

Automatic K-Cup Filling and Sealing Machine by Haitec - Model HT-F20R



We've vetted this machine out in-person and have been extremely impressed with its quality, features, and performance. It's a "plug-and-play" situation for sure. Wipe it down (machine oil protection for shipping), clip the nylon tie-straps that secure the moving pieces during transport, plug in 1/2" air line, and change out the plug to a USA 30amp 3 wire 220v, and off you go!

Cup holder can handle about 150 cups, coffee hopper (with agitator and auger) about 5 lbs. of ground. Lid receptacle about 500. I watched it kick out 25 cups a minute non-stop. Talk about a sweet set up!

This fully-automatic k-cup filling and sealing machine is perfect for those looking to test the market on new products. The HT-F20RS has an upgraded high-speed motor and can quickly produce 12-15 k-cups per minute (depending on the type of cup and coffee). Made from the same solid, quality parts as Haitec's larger machines.

An affordable choice for your business! Excellent start-up machine into the K-Cup market!

Click for quote, call us @ 855.585.2500 or call/text Rick direct @ 949.289.8083 for additional hands-on details and next steps to get one of these to your roastery!

Make sure to watch the video review below!



APPLICATION
K-cup Filling and Sealing machine

FEATURES
• Filling accuracy ±0.2g
• Filled by Servo driven auger
• Sensor detection of cup, filling, lid and sealing

CAPACITY
12-15 cups/minute
16g-18g course coffee filling weight

ELECTRICAL
220v // Single Phase  // 50/60Hz // 1200w

REQUIRED AIR PRESSURE
90psi // 4.5 cfm // Minimum 20 gallon reserve tank

MANUFACTURED
China

MANUFACTURER LEAD TIME
50 days

MANUFACTURER WARRANTY
One year

WEIGHT
309 lb.
(140 kg)

DIMENSIONS
33" x 24" x 66"
(82cm  x 60cm  x 165cm)

MANUFACTURED
China

MANUFACTURER LEAD TIME
50 days

MANUFACTURER WARRANTY
One year

WEIGHT
120 kg / 265 lb

DIMENSIONS
820mm L x 602mm W x 1653mm H
33" x 24" x 66"

OPTIONS
• Air Compressor
• Nitrogen Generator
• Nitrogen Injection Assembly



ADDITIONAL INFORMATION AVAILABLE BELOW


DESCRIPTION
This is a fully-automatic coffee capsule filling and sealing machine, which can produce K-Cup, Nespresso compatible capsule, Dolce Gusto, Lavazza, etc. This machine is also a mini-type which speeds at 8-12 capsules per minute (depends on which kind of capsule and coffee, etc.). With quite affordable price, this machine is suitable for customers want to
test the market of new products.


TECHNICAL PARAMETERS

PRODUCT Ground Coffee

GRADE automatic, PLC, Electro pneumatic driven

CAPACITY 12-15 capsules/minute

FEEDING Servo driven auger filling

FILLING WEIGHT 0-20g

FILLING ACCURACY ±0.2g

POWER Single Phase 220V 50/60HZ 1200W

AIR SUPPLY/ Consumption ≥0.6Mpa, 0.1m³/min

WEIGHT 120Kg

DIMENSION 602×820×1653mm

CASING Stainless steel, duralumin, etc

CONTACT PARTS Stainless steel
