Single Lane K-Cup Filling and Sealing Machine 25 Cups per Minute

Eastsign Model DCC-1500

The DCC-1500 Eastsign's single-lane inline K-cup filling and sealing machine. Kicks out 25 cups per minute. Auger filling controlled Schneider servo motor.

Known for accurate filling, +/- 1.5%.

Nitrogen flushing is optional.

Heat sealing with pre-cut aluminum foil lids.

SPECS

TYPE
DCC Series Inline

PRODUCTION SPEED
25 cups/min

MAX FILLING CAPACITY
+/- 1.5%
Standard k-cup size 50mm-50.5mm

POWER
220v single phase/ 1.5kw

AIR
0.8 MPa or 116 psi
0.1 m3/min or 3.52 cfm

WEIGHT
1430 lbs / 710 kg

DIMENSIONS
77"  x 36" x 87"
1950mm x 900mm x 2200mm



MPE GPX Precision Disc Grinder

The Modern Process Equipment GPX is a continuous-running industrial grinder built for a superior grind. Its 5.5" diameter "diamond hard" discs are precision-cut for ideal cutting action and infinite adjustment control. Resulting in a cool, uniform grind for the best brew.



APPLICATION
Heavy Duty Shop Grinder for Gourmet, Espresso, Filter, Ultrafine/Turkish, Cold Brew

FEATURES
• Grind range of Ultrafine - Coarse [50-3000 microns]
• Designed for fast and easy cleanout
• Bag holder tray (standard)
• Grind adjustment can be made while unit is in operation

CAPACITY
Hopper capacity: 8 lb (0.4 cu-ft)
25 lb (1.25 cu-ft)
50 lb (2.5 cu-ft)

OUTPUT
50-3000 microns; estimated output = 50 to 500 lb/hr (pending final grind size)
[8.3 lb/min]

GRINDING DISKS
5.5 inch diameter (140 mm) “diamond hard” grinding discs

ELECTRICAL
Motor 3 Hp (2.2kW)
Heavy Duty 60 Hz, 220/230 VAC 3 phase

Motor 3 Hp (2.2kW)
Heavy Duty 60 Hz, 220 VAC single phase

Motor 3 Hp (2.2kW)
Heavy Duty 60 Hz, 480 VAC 3 phase

Motor 3 Hp (2.2kW)
Heavy Duty 50 Hz, 380 VAC 3 phase

MANUFACTURED
USA

MANUFACTURER LEAD TIME
Standard: 2 to 4 weeks. Inquire for expedited shipment.

MANUFACTURER WARRANTY
1 year

OPTIONS
• Large tote container for ground product collection
• Hopper grate magnet
• Economical disc re-sharpening
• Bench and table-mounted model
• Turkish and Ultrafine configuration (optimized rotor/discs)

Javalytics JAV-RDA-D Roast Analyzer

The Javalytics RDA-D Roast Degree Analyzer offers two distinct modes of operation - a user-friendly touch screen LCD display and a computer linked to the JAV-NET network software. With the latter, the user has the option of including a myriad of definable variables (operator, country of origin, roast, etc.), with every data set automatically saved in a time-and-date-stamped comma separated value file.

APPLICATION

Measures the degree of roast darkness

FEATURES
• Samples directly in sample tray - no glass dishes
• LCD touchscreen display with simple human interface
• or run from a computer using JAV-NET software (included)

SCALES
• Gourmet (~SCAA Tiles)
• Commercial
• PB
• NEO

CAPACITY
Built in sample tray

ELECTRICAL
 100v - 240v // 50-60 Hz

MANUFACTURED
USA

MANUFACTURER LEAD TIME
1 week

MANUFACTURER WARRANTY
1 year

OPTIONS
None

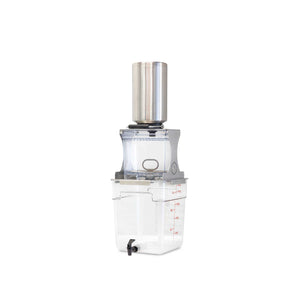

TORR Hive Brew Cafe
Manual Cold Brew System



The TORR HIVE BREW Cafe coffee brewing system will cold brew coffee in up to 2-pound batches in 15 to 25 minutes. The brew creates a “Cold Expresso” concentrate at an average of 2 Brix. Brew time and yields are dependent on your dilution ratio, origin, roast profile, and grind.



APPLICATION
Cold Brewing System

FEATURES
• Up to a 40% increase in yield from your beans
• Faster brew times of 15 to 25 minutes
• Superior flavor and longer shelf life
• Higher Brix concentrate at the beginning of the brew
• Clear concentrate with low turbidity
• Brew cells are easy to clean
• The Hive Brew system is easily expandable

CAPACITY
3.5 gallons of concentrate 2 Brix.

ELECTRICAL
 None

MANUFACTURED
USA

MANUFACTURER LEAD TIME
1 week

MANUFACTURER WARRANTY
1 year or 2000 operating hours

Freight prep and shipping not included
