Equipment Recommendation
092123-cy

CEPros recommends the following equipment for your roastery. Detail for each follows.

1. Rotary K-Cup Filling and Sealing Machine
ExPak Model CR-90

  • High speed rotary, up to 90 cups per minute output
  • Fully mechanical driven
  • Dual heat seal units
  • Nitrogen flush ready
  • Lead time - 8-10 week delivery

2. Bean Analyzer
Agtron M-Basic II Process Analyzer

  • Standard in the industry
  • Analyzes the bean chemistry, not color, for optimum accuracy
  • Whole and ground coffee
  • Made in USA
  • Lead time - one week

3. Grinder
MPE GPX Industrial Grinder

  • Continuous grinding
  • 25 lb. optional hopper, 8 lb. standard
  • >450 lbs/hr fine; >600 lbs/hr medium
  • Made in USA
  • Lead time - two weeks

4. Weigh-Fill Machine
ActionPac ME109

  • Options include different sizes for hopper, funnel, stand, vibratory plate, nitrogen flushing
  • Table-top version with optional stand base
  • Made in USA
  • Lead time - 4-6 weeks

5. Weigh-Fill Machine Vacuum Loader
ActionPac ActionVac

  • Ground or whole bean handling
  • Connects directly to ActionPac ME109
  • Includes Weigh Fill machine cover
  • Made in USA
  • Lead time - 4-6 weeks

6. Horizontal Band Sealer
ActionPac Seal-E-7

  • Seals any style of bag perfectly
  • Fully adjustable for comfort of use
  • Includes embossing unit
  • Optional ink-jet printer
  • Completes the ActionPac fill & seal set
  • Lead time - 4-6 weeks

7. Bean Storage
Fibertech Storage Bins

  • Four size options
  • Pneumatic door option
  • Can customize as needed including brand logo on sides
  • Made in USA
  • Lead time - 1 week

K-cup Filling and Sealing Machine - Expak CR90 Rotary w/Vacuum Conveyor - 75 CPM

Price
$45,000.00

Rotary K-cup Machine Filling and Sealing Machine with Vacuum Conveyor

Expak CR90

The Expak CR90 is designed for smooth, precise, and stable operation, with cams and rods driving every step. This avoids timing issues typically experienced with pneumatic actuator units. Super robust and reliable. Plus, it has nitrogen environment safeguards to lock in the freshness and aroma of the coffee. Comes with Vacuum Conveyor to fill the 10 L hopper.

Incredible machine with the latest technology.

TYPE
High-speed Rotary

FEATURES
• Fully mechanically driven to guarantee stable operation
• Dual heat seal units
• Audible safety alarms

PRODUCTION SPEED
Up to 60-75 cups/minute

MAX FILLING CAPACITY
12.5g with a filling accuracy of  ±0.2g

POWER
220V // 50/60hz // single phase // 6KW //32 amps
220V // 50/60hz // 3 phase // 6KW // 18.5 amps
380V // 50/60hz // 3 phase // 6KW // 11 amps

AIR
0.6-0.8 MPa or 87-116 psi
0.2 m3/min or 7 cfm
Minimum reserve tank size recommendation: 30 gallons

NITROGEN
5Nm3/H

MANUFACTURER LEAD TIME
28 days

MANUFACTURER WARRANTY
13 months

WEIGHT
4850 lbs / 2200 kg

DIMENSIONS
68" x 83" x 104"

OPTIONS

Screw Lifter Conveyor
Uses a larger 110 L hopper to auto load coffee into the machine. Recommended for espresso coffee to help preserve the aroma.
Add $5,000

Check Weigher
Confirm cup weight within a set range. Cups not within range are auto moved off the belt.
Add $8,500

Flavor Pump System

Add liquid flavor (0.05 ml per capsule) directly into the cup.
Add $1,800

Customized Conveyor Belt with Flip-Flop
Bulk package with auto counting and move to the next box.
Starting at $1,800

Fully Automated Cartoner with Robotic System and Conveyor Belt Buffer
Capacity up to 900 cartons per hour
Add $85,250

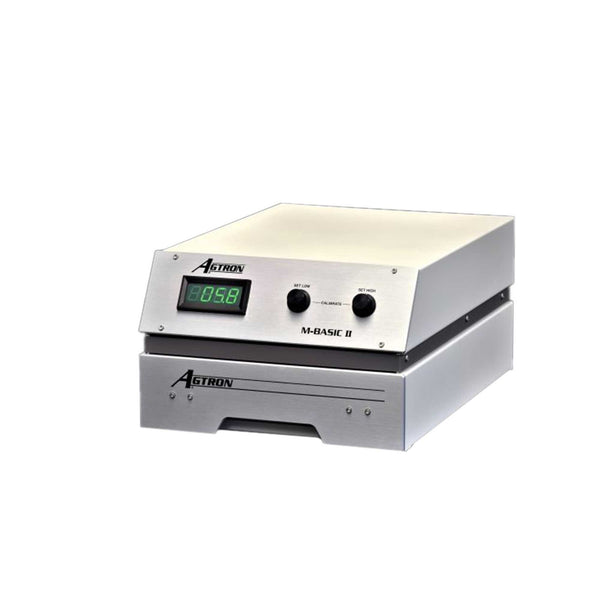

Agtron M-BASIC II Process Analyzer

Price
$10,950.00

Agtron M-BASIC II Process Analyzer

The M-BASIC II is an abridged spectrophotometer designed specifically to address the special requirements associated with evaluating and quantifying the roast of whole beans and ground coffee.

Unlike general "color" instruments, the M-BASIC II operates in the near-infrared energy band where the highest spectral reflectance activity occurs as a function of the degree of roast.



APPLICATION
Measure coffee roast quality

FEATURES
• Improved Linearity. Correlation tolerance to the related compound group of 1.0%.
• Simplified calibration.
• Is a top-viewing instrument using resilient plastic dishes.

CAPACITY
4.8 sq. in. circular cup

ELECTRICAL
100V, 120V, 220V or 240V / 50/60Hz / 28 Watts

MANUFACTURED
USA

MANUFACTURER LEAD TIME
One week

MANUFACTURER WARRANTY
Two years

OPTIONS
None



MPE GPX Industrial Grinder

Price
$8,838.00

MPE GPX Precision Disc Grinder

The Modern Process Equipment GPX is a continuous-running industrial grinder built for a superior grind. Its 5.5" diameter "diamond hard" discs are precision-cut for ideal cutting action and infinite adjustment control.

FOR USE IN
Heavy-duty grinder for gourmet, espresso, filter, ultrafine/Turkish, cold brew

OUTPUT, LBS/MIN
8.3 lbs/minute

MAX DAILY OUTPUT, LBS (8-HR SHIFT)
60-500 lbs/hr (based on grind size)
480-4000 lbs/day

MAX OPERATING CYCLE
Continuous grinding

HOPPER CAPACITY
8 lbs (0.4 cu-ft) Standard
25 lbs (1.5 cu-ft) and 50 lbs (2.5 cu-ft) optional

GRINDING INTO
Ground material container

GRIND RANGE
Espresso to Coarse: 250-3000 µm
Ultrafine* to Coarse: 50-3000 µm
(*with optional ultrafine configuration)

FEATURES
Floor or bench model available
Grind range of ultrafine to coarse
Fast and easy cleanout
Bag holder tray (standard)
Grind adjustment while unit is operating

POWER
220v // single or 3-phase // 50 or 60 Hz // 3 HP (2.2 kW)

GRINDING DISC DIAMETER & MATERIAL
140mm (5.5") diamond-hard discs

CERTIFICATIONS
Contact CEPros for options

DIMENSIONS (DxWxH, inches)
24" x 26" x 58.5"

WEIGHT, LBS
400 lbs

MANUFACTURED
USA

MANUFACTURER LEAD TIME
Standard: 2 to 4 weeks. Inquire for expedited shipment.

MANUFACTURER WARRANTY
1 year

Weigh Fill Packaging Machine - ActionPac ME109

Price
$12,000.00

ActionPac ME109

Linear Style Weigh Fill


The ActionPac ME109 net weigh scales are designed to be simple and very precise. This linear style, net-weigh scale uses sophisticated, proprietary controls to automatically weigh and package your coffee.

Its modular design allows for convenient upgrades and quick disconnect parts. It has a proven track record for reliability and durability and is a standard in the industry.  8-16oz. side gusseted former funnel included.

NOTE: Seen with optional stainless steel stand, not included.

APPLICATION
Weigh-fill machine

FEATURES
• Handles large volumes of coffee efficiently
• Weighing system is unmatched for quality
• High accuracy up to 1/10th g

CAPACITY
1 oz to 5 lbs
Hopper size 2.2 cu ft / 45 lbs

ELECTRICAL
110v // Single Phase // 60 Hz // 5 Amps (dedicated circuit)

PNEUMATIC REQUIREMENTS:
1/2” Air Drop @ 60 PSI // 1-2 CFM // 1/4” NPT, Female Scale Input

MANUFACTURED
USA

MANUFACTURER LEAD TIME
5-6 weeks

MANUFACTURER WARRANTY
1 year

WEIGHT
345 lbs

DIMENSIONS
28" x 33" x 50"

OPTIONS
• Stainless steel stand - Add $1,437.50
• Casters - Add $666.00
• Hopper vibrator for ground coffee - Add $1,100.00
• Nitrogen flush - Add $1,740.00
• Various chutes for gusset bags and pouches - Quoted
• Hopper extensions - Quoted
• Bucket & Funnel Kits for weights above 1 lb. - Quoted


Vacuum Loader - ActionPac ACVAC

Price
$6,240.00

Vacuum Loader - ActionPac ACVAC™


The ActionPac Coffee Conveying System offers ultimate flexibility when it comes to transferring coffee beans. Easily move beans from a bag, super sack or box right to a roaster, cooler, destoner, packaging station, grinder, and more! This self-contained line is easy to operate, ensures quality control, and requires minimal maintenance - saving you money on finished products. Plus, you can adjust the speed depending on bean variety - slow for fragile roasted beans and increase for heavier, heartier greens.

APPLICATION
Pneumatic Vacuum Loader

FEATURES
• Handles ground or whole bean coffee and dark roast
• Larger motor available for green beans
• Eliminates manual coffee transfer of bulk coffee
• American made stainless steel for durability

CAPACITY
Approx. 2000 lbs/hr

ELECTRICAL
110v // Single Phase // 15 amps

MANUFACTURED
USA

MANUFACTURER LEAD TIME
5-6 weeks

MANUFACTURER WARRANTY
1 year

WEIGHT
65 lbs.

DIMENSIONS
30" L x 15" W 38" H

OPTIONS
• Larger size motor for green beans
• Custom mounts for roasters

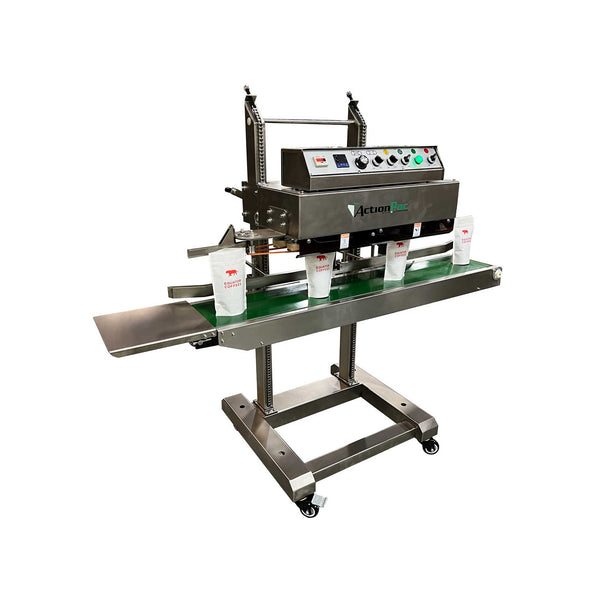

Heavy Duty Vertical Band Sealer - ActionPac SEAL-E-7

Price
$4,914.00

Heavy Duty Stainless Steel Bag Sealer - ActionPac SEAL-E-7

The ActionPac SEAL-E-7 bag sealer can handle the toughest packaging materials. It is unparalleled for maximum efficiency and comfort. Can handle large volumes of coffee bags with ease.  Fully adjustable with a variable speed conveyor.

Includes: floor stand, casters, embossing unit, easy to change bag sizes, spare parts kit, tool box, bag counter and bag guide.

APPLICATION
Bag Sealer

FEATURES
• Seals any style of bag perfectly
• Advanced technologies for precise sealing
• Reliable and ergonomic - easy adjustments

INCLUDES
 Floor stand
• Casters
• Embossing unit
• Easy to change bag sizes up to 27"
• Spare parts kit
• Tool box
• Bag counter
• Bag guide

CAPACITY
Maximum weight 33 lbs.
10mm seal width
32ft / minute

ELECTRICAL
110v // 50-60 Hz // Single Phase // 5 amps

MANUFACTURED
USA

MANUFACTURER LEAD TIME
5-6 weeks

MANUFACTURER WARRANTY
1 year

WEIGHT
287 lbs

DIMENSIONS
67" x 29.5" x 63"

OPTIONS
• Inkjet printer


    Storage Bin Collection

    Fibertech Storage Bin: 46-Gallon
    Fibertech Storage Bin: 46-Gallon
    Fibertech Storage Bin: 46-Gallon
    Price
    $1,750.00
    Fibertech Storage Bin: 66-Gallon
    Fibertech Storage Bin: 66-Gallon
    Fibertech Storage Bin: 66-Gallon
    Price
    $1,750.00
    Fibertech Storage Bin: 295-Gallon
    Fibertech Storage Bin: 295-Gallon
    Fibertech Storage Bin: 295-Gallon
    Price
    $3,026.00
    Fibertech Storage Bin: 320-Gallon
    Fibertech Storage Bin: 320-Gallon
    Fibertech Storage Bin: 320-Gallon
    Price
    $3,026.00
    Fibertech Storage Bin Extension
    Fibertech Storage Bin Extension
    Fibertech Storage Bin Extension
    Price
    $430.00
